Remote sensing of NO2
2.3.1 Radiative Transfer Equation: Direct part

Plane surface, no refraction, no extinction

The simplest case is that of a light returned from a plane surface, ignoring any refraction or extinction.

Plane surface, no refraction, with absorption

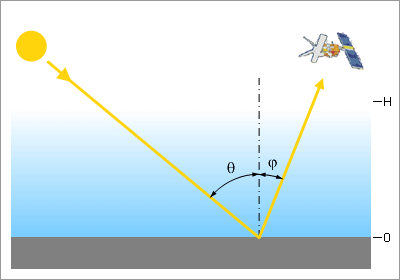

Fig 2.3.1.2: Plane parallel, no refraction, with absorption

Image: AT2-ELS

The SZA and VZA are independent of altitude!

Spherical surface, no refraction, with absorption

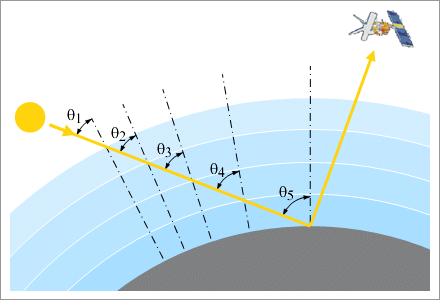

Fig 2.3.1.3: Spherical, no refraction, with absorption

Image: AT2-ELS

SZA and VZA depend on altitude with larger values in the lower layers!

For photochemically active species, this has also an impact on the local concentration.
