Campaigns

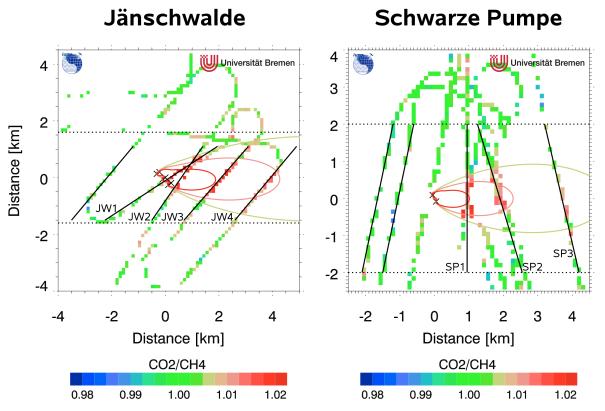

MAMAP gridded data of XCO2 for two coal fired power plants. The colored contour lines show the results of a Gaussian plume inversion to obtain the CO2 emission rates. The solid black lines indicate the boundaries chosen for the alternative Gaussian integral approach. For more details see Krings et al (2011).

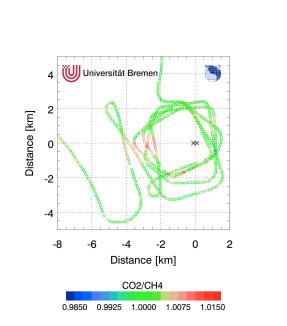

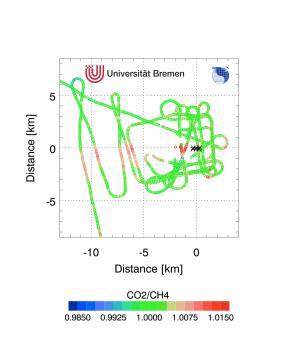

Preliminary results obtained over the power plants Jänschwalde (upper) and Schwarze Pumpe (lower) showing the improved sensor performance of MAMAP. Improved precision of ~ 0.6 % (2σ) for XCO2(CH4) was achieved on scales with ~ 10 km of diameter through the introduction of a spatial scrambler unit in the optical path of the instrument (for more details see also Gerilowski et al. 2011).

References

  • Quantification of methane emission rates from coal mine ventilation shafts using airborne remote sensing data, T. Krings, K. Gerilowski, M. Buchwitz, J. Hartmann, T. Sachs, J. Erzinger, J. P. Burrows, and H. Bovensmann, Atmos. Meas. Tech. Discuss., 5, 7383-7429, 2012, doi:10.5194/amtd-5-7383-2012 www.atmos-meas-tech-discuss.net/5/7383/2012/
  • Remote sensing atmospheric trace gases with infrared imaging spectroscopy, Ira Leifer, David M. Tratt, Vincent J. Realmuto, Konstantin Gerilowski, John P. Burrows, EOS, TRANSACTIONS AMERICAN GEOPHYSICAL UNION, VOL. 93, NO. 50, PAGE 525, 2012 doi:10.1029/2012EO500006, http://www.agu.org/pubs/crossref/2012/2012EO500006.shtml
  • H. Bovensmann, M. Buchwitz, J. P. Burrows, M. Reuter, T. Krings, K. Gerilowski, O. Schneising, J. Heymann, A. Tretner, and J. Erzinger, A remote sensing technique for global monitoring of power plant CO2 emissions from space and related applications, Atmos. Meas. Tech., 3, 781-811, 2010
  • K. Gerilowski, A. Tretner, T. Krings, M. Buchwitz, P. P. Bertagnolio, F. Belemezov, J. Erzinger, J. P. Burrows, and H. Bovensmann, MAMAP a new spectrometer system for column-averaged methane and carbon dioxide observations from aircraft: instrument description and performance analysis, Atmos. Meas. Tech., 4, 215-243, 2011
  • T. Krings, K. Gerilowski, M. Buchwitz, M. Reuter, A. Tretner, J. Erzinger, D. Heinze, J. P. Burrows, and H. Bovensmann, MAMAP a new spectrometer system for column-averaged methane and carbon dioxide observations from aircraft: retrieval algorithm and first inversions for point source emission rates, Atmos. Meas. Tech. Discuss., 4, 2207-2271, 2011
  • Bovensmann, H., J. P. Burrows, M. Buchwitz, J. Frerick, S. Noël, V. V. Rozanov, K.V. Chance, and A. H. P. Goede, SCIAMACHY - Mission objectives and measurement modes, J. Atmos. Sci., 56, (2), 127-150, 1999.
  • Buchwitz, M., V.V. Rozanov, and J.P. Burrows, A near-infrared optimized DOAS method for the fast global retrieval of atmospheric CH4, CO, CO2, H2O, and N2O total column amounts from SCIAMACHY Envisat-1 nadir radiances, J. Geophys. Res.105, 15,231-15,245, 2000.
  • Buchwitz, M., R. de Beek, S. Noël, J. P. Burrows, H. Bovensmann, H. Bremer, P.Bergamaschi , S. Körner, and M. Heimann, Carbon monoxide, methane and carbon dioxide columns retrieved from SCIAMACHY by WFM-DOAS: year 2003 initial dataset, Atmos. Chem. Phys., 5, 3313-3329, 2005.
  • Buchwitz, M., R. de Beek, S. Noël, J. P. Burrows, H. Bovensmann, O. Schneising, I.Khlystova, M. Bruns, H. Bremer, P. Bergamaschi , S. Körner, and M. Heimann, Atmospheric carbon gases retrieved from SCIAMACHY by WFM-DOAS: version 0.5CO and CH4 and impact of calibration improvements on CO2 retrieval, Atmos. Chem.Phys. (in press), 2006.
  • Houghton, J. T., Ding, Y., Griggs, D. J., Noguer, M., van der Linden, P. J., Dai, X.,Maskell, K., Johnson, C. A., Eds. IPCC 2001: Climate Change 2001: The Scientific Basis, Contribution of Working Group I to the Third Assessment Report of the Intergovernmental Panel on Climate Change, Cambridge University Press, Cambridge, United Kingdom and New York, NY, USA, 2001.

AGU 2014 Poster & Handout

  • Remote sensing of large-scale methane emission sources with the Methane Airborne MAPper (MAMAP) instrument over Kern River and Kern Front Oil Fields and validation through airborne in-situ measurements - Initial results from COMEX, K. Gerilowski, S. Krautwurst, R.W. Kolyer, D.R. Thompson, H. Jonsson, T. Krings, M. Horstjann, I. Leifer, M. Eastwood, R.O. Green, S. Vigil, D. Schüttemeyer, M. Fladeland, J.P. Burrows, H. Bovensmann, AGU Fall Meeting 2014, A13F-3243
  • AGU 2014 paper
  • AGU 2014 handout
