This page shows plots of the degradation (=1/m-factor) observed for each of the SCIAMACHY light paths (nadir, limb, calibration) for the last 4 weeks.

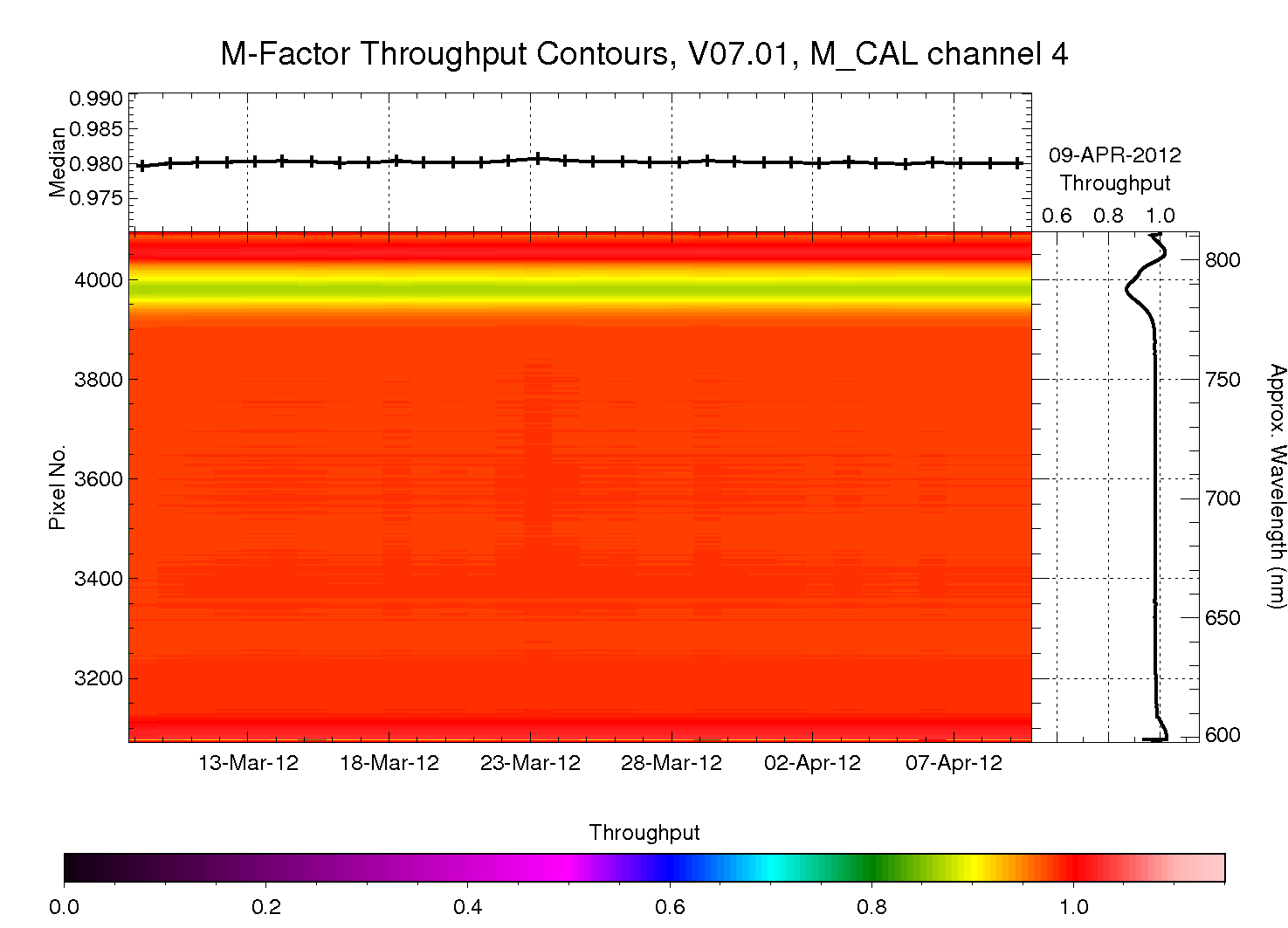

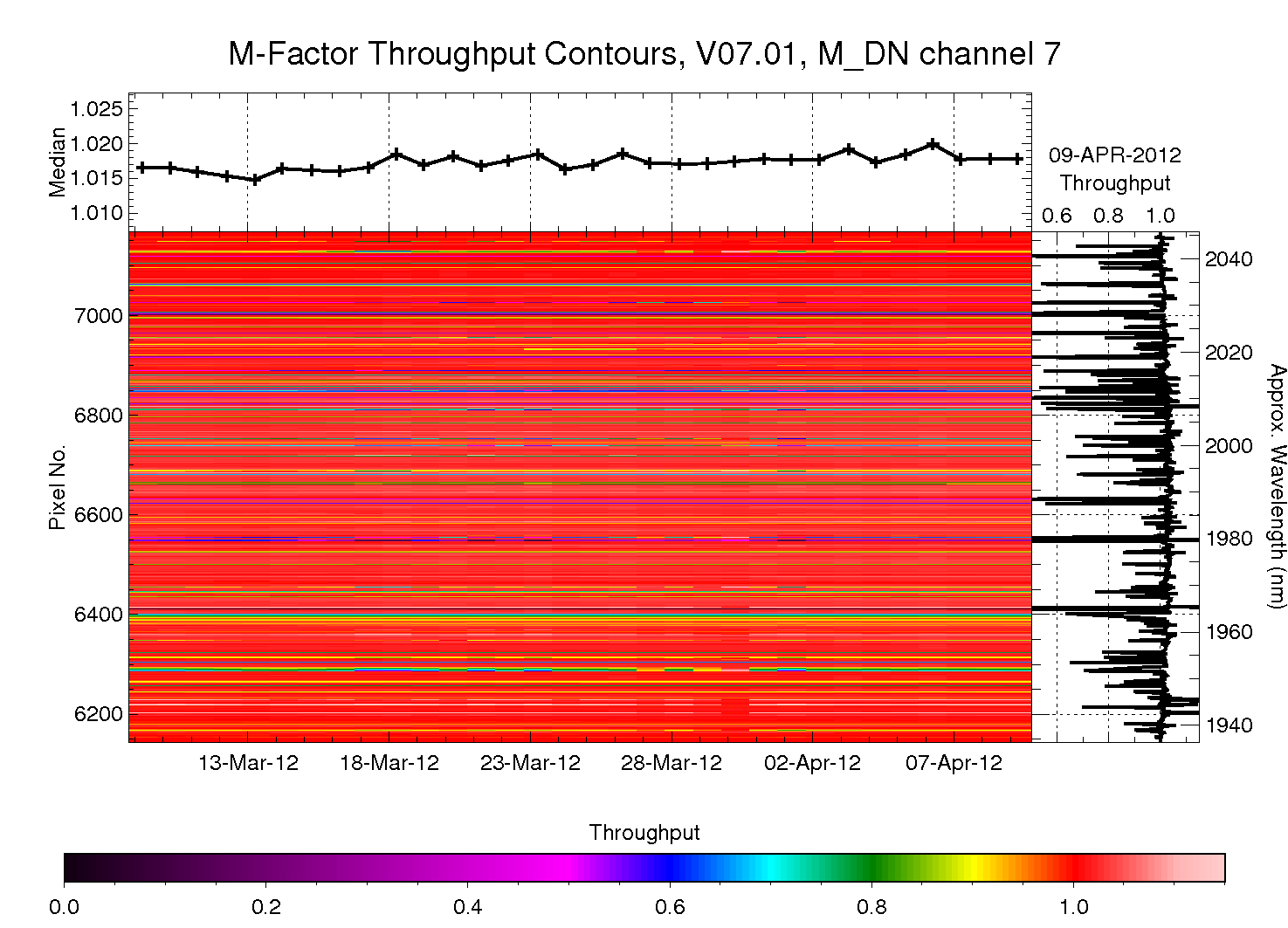

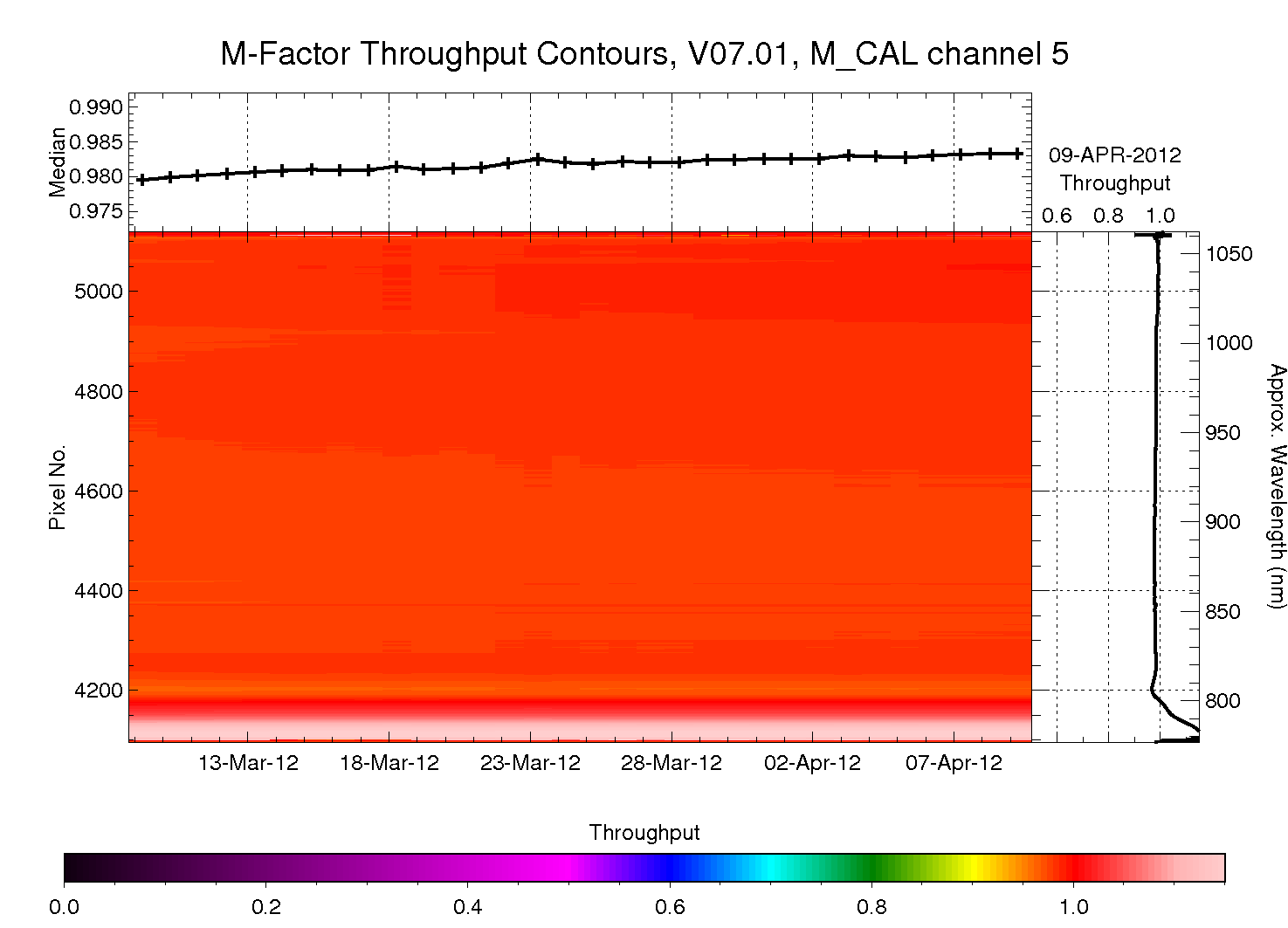

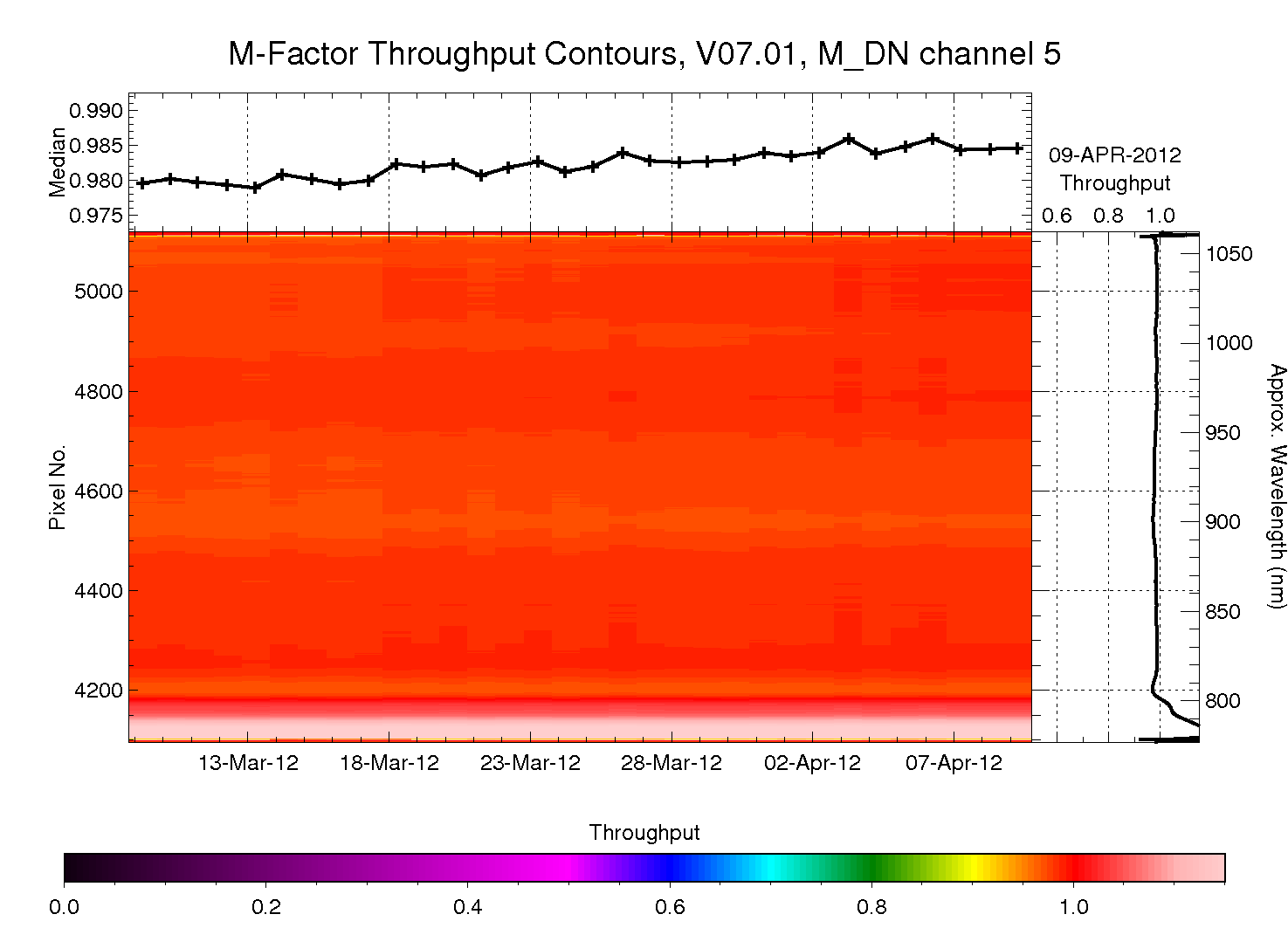

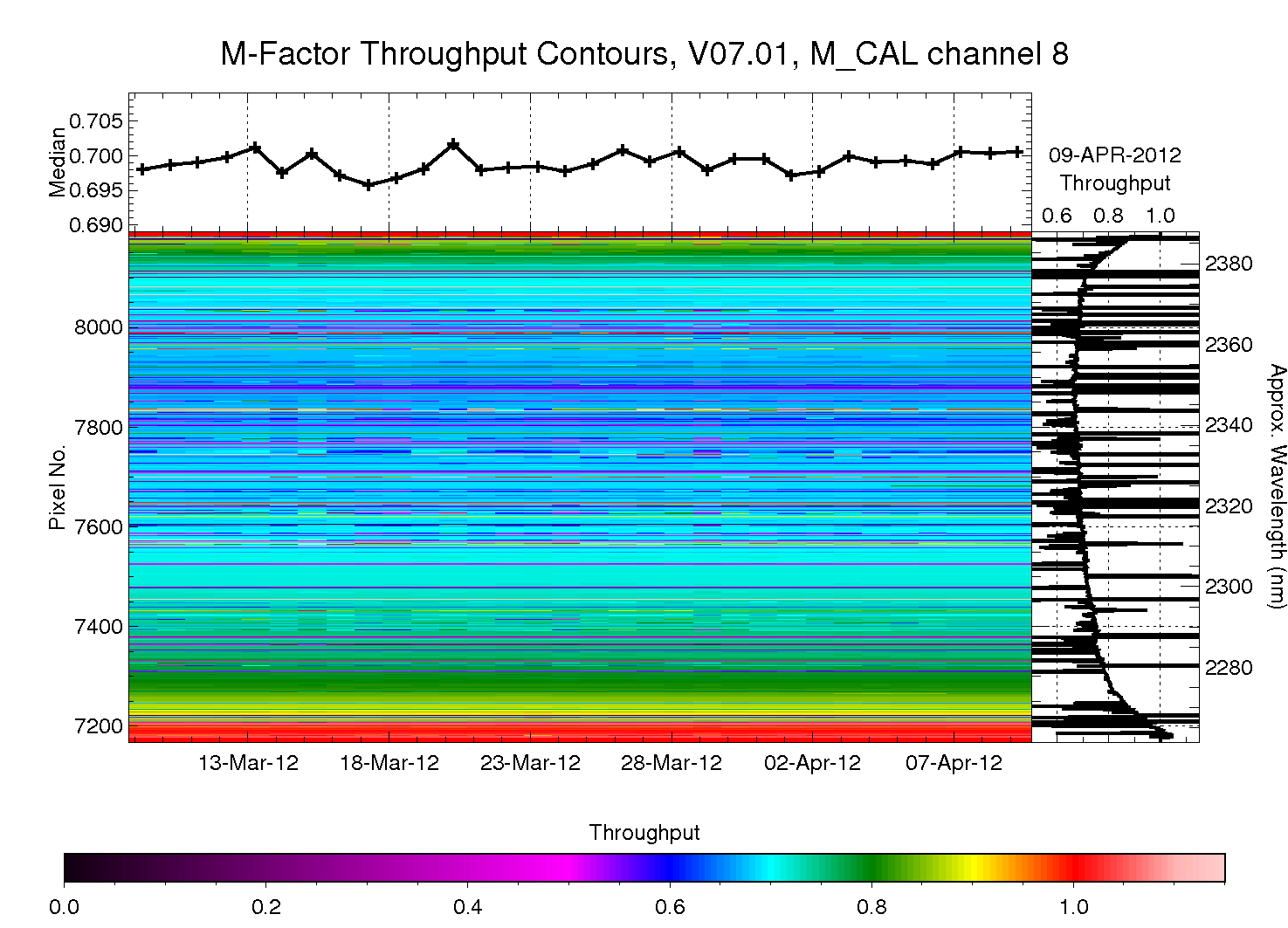

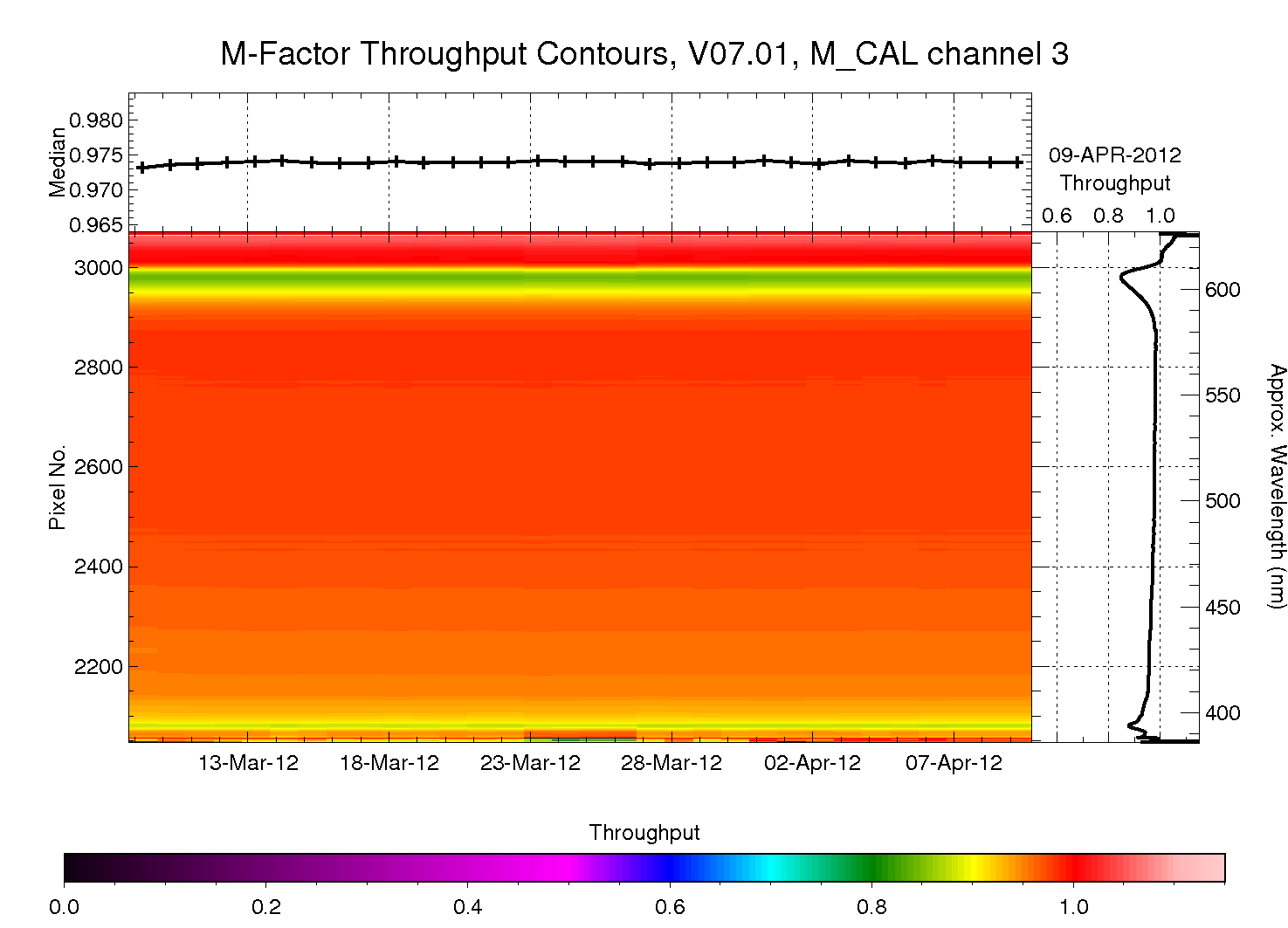

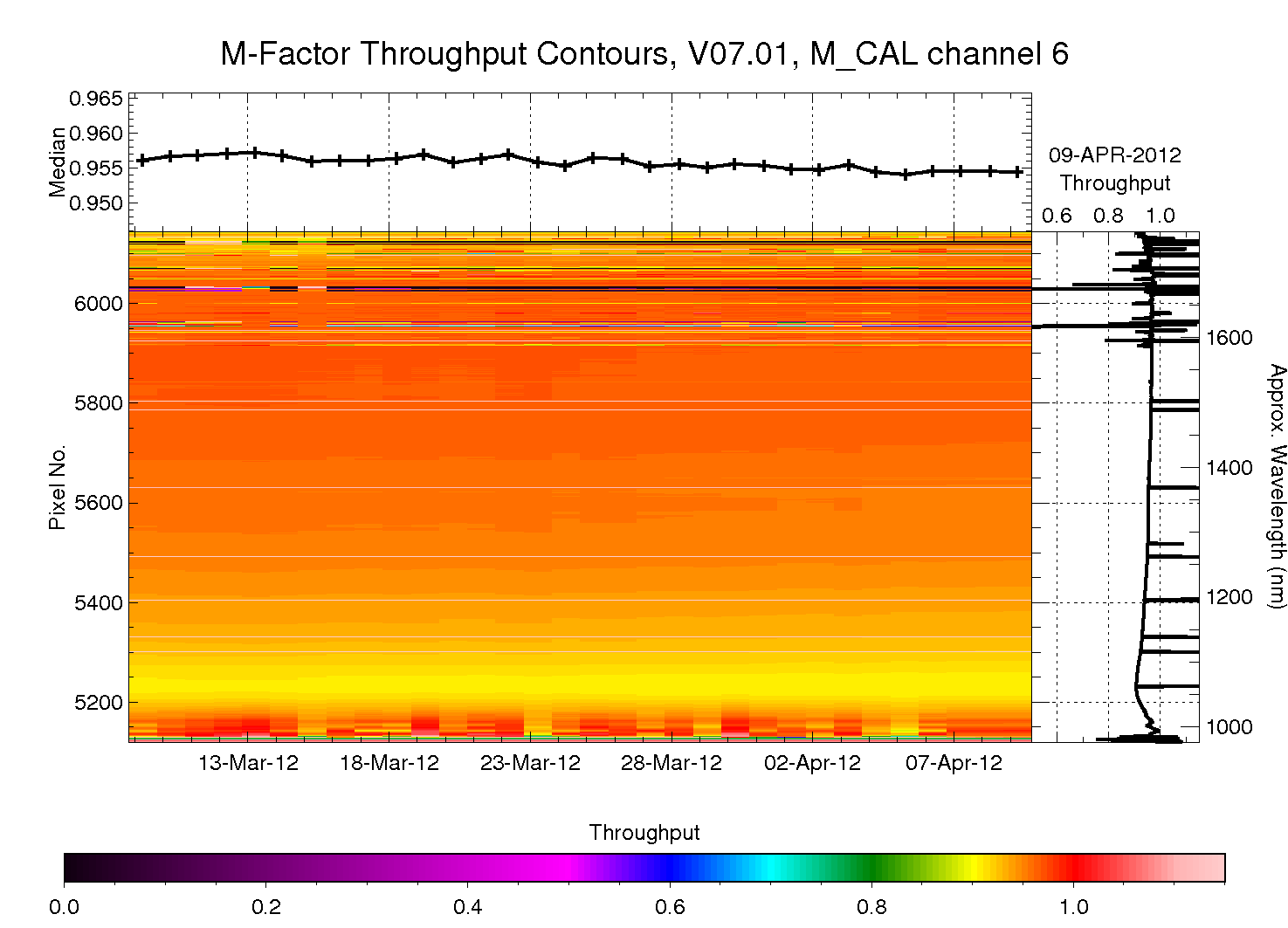

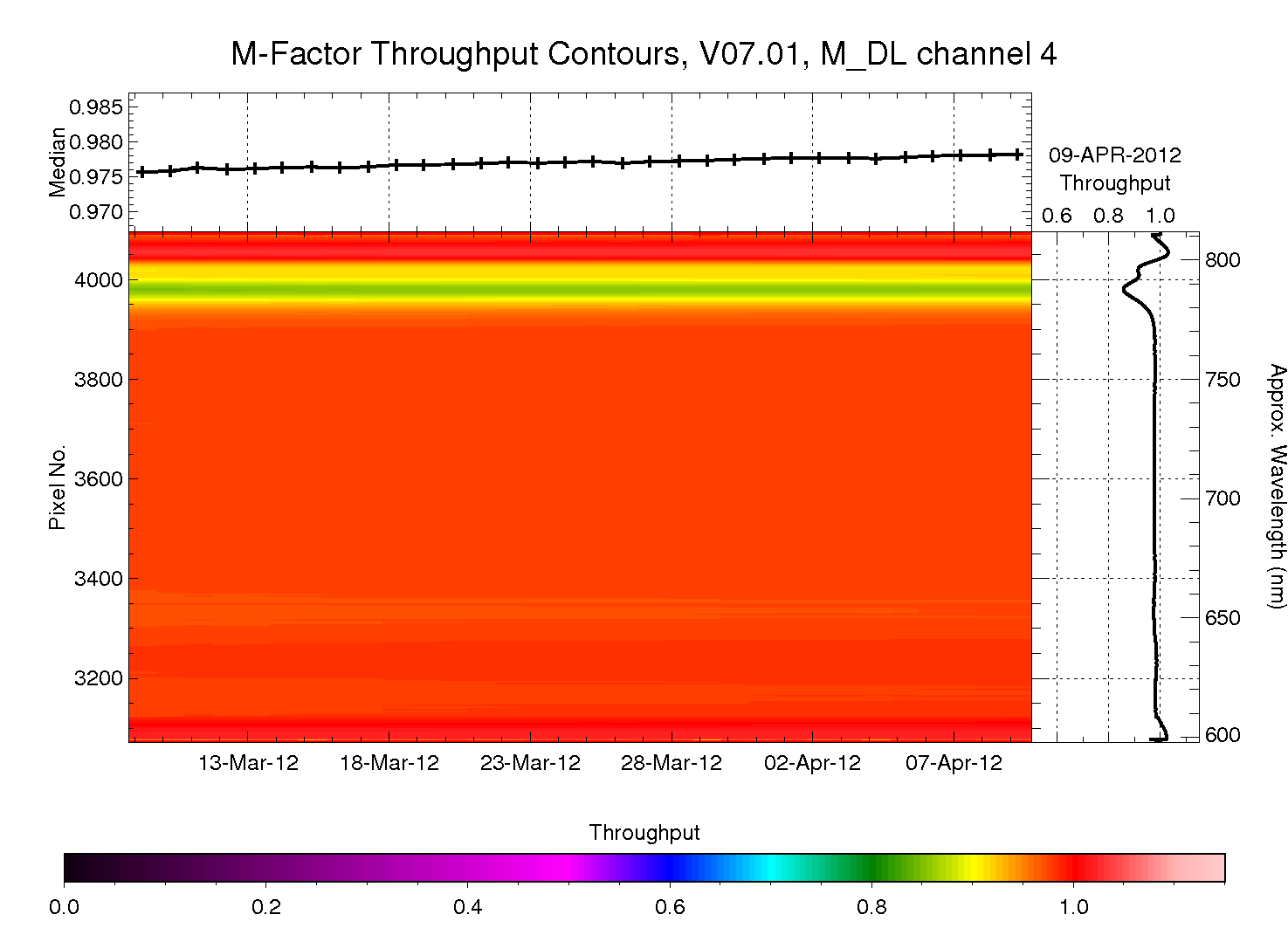

Click on the small images below to see the enlarged full plots. The plots are updated once per week using the latest NRT measurements from SCIAMACHY. The current plots covers 4 weeks until
.

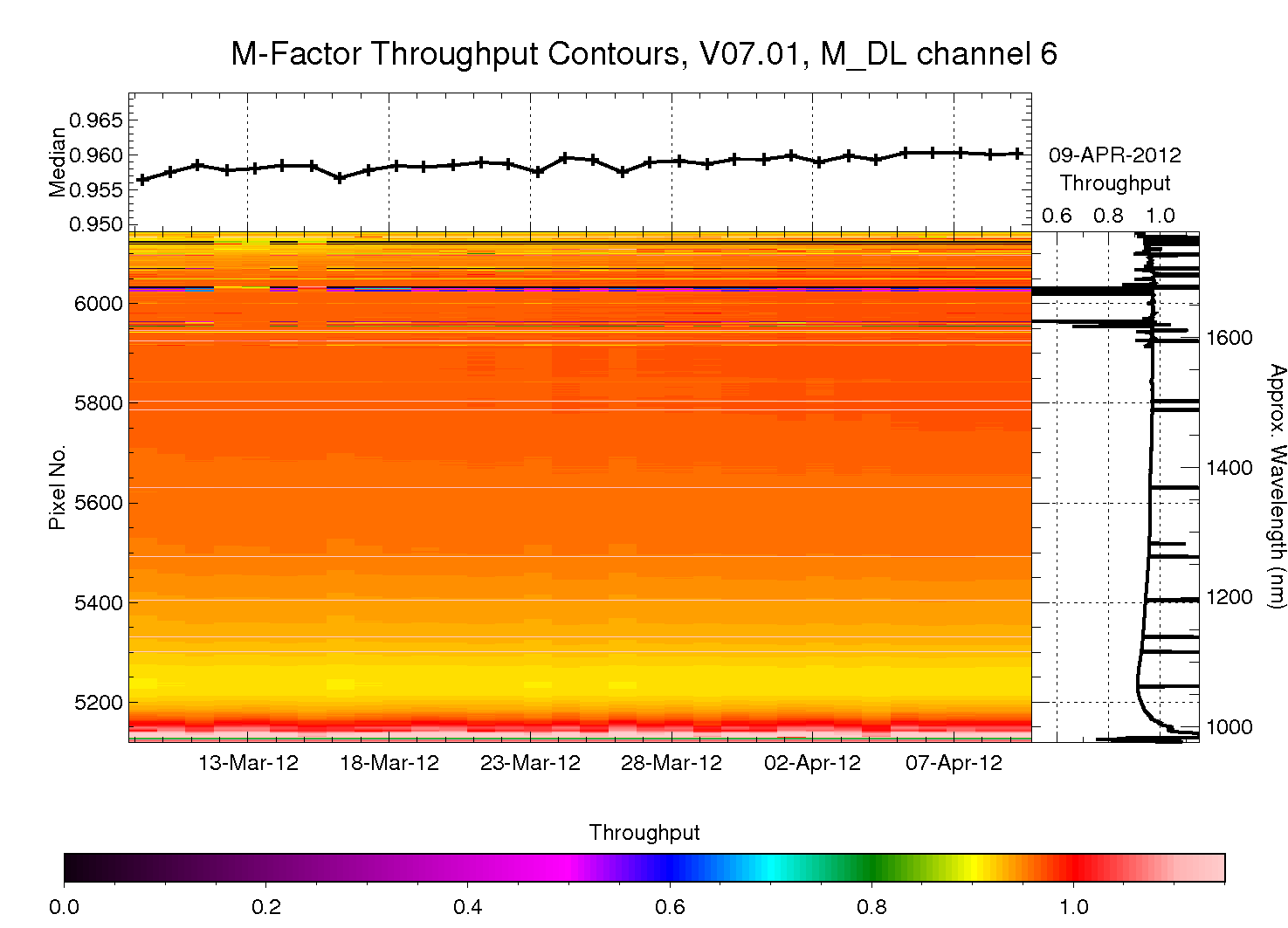

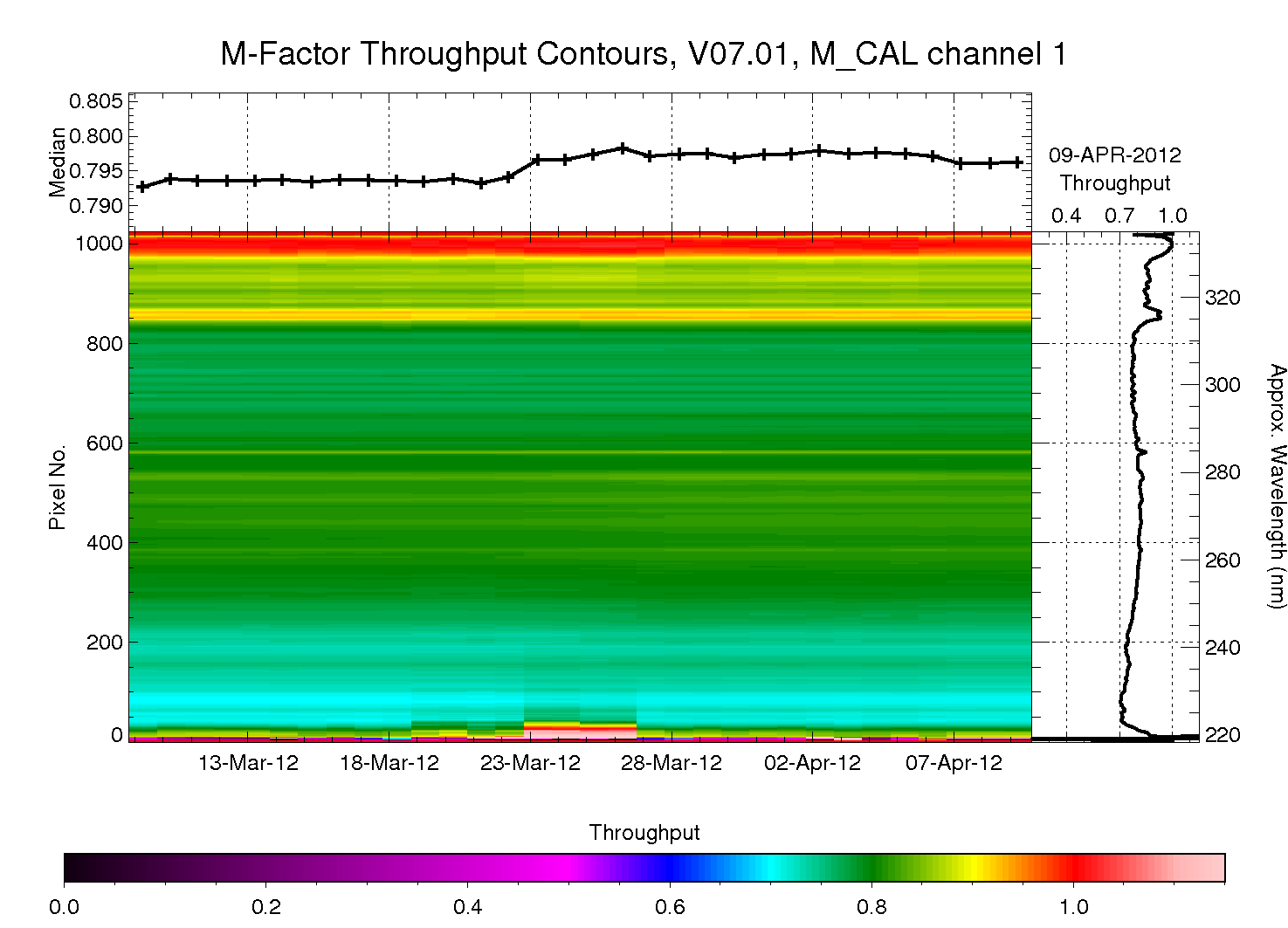

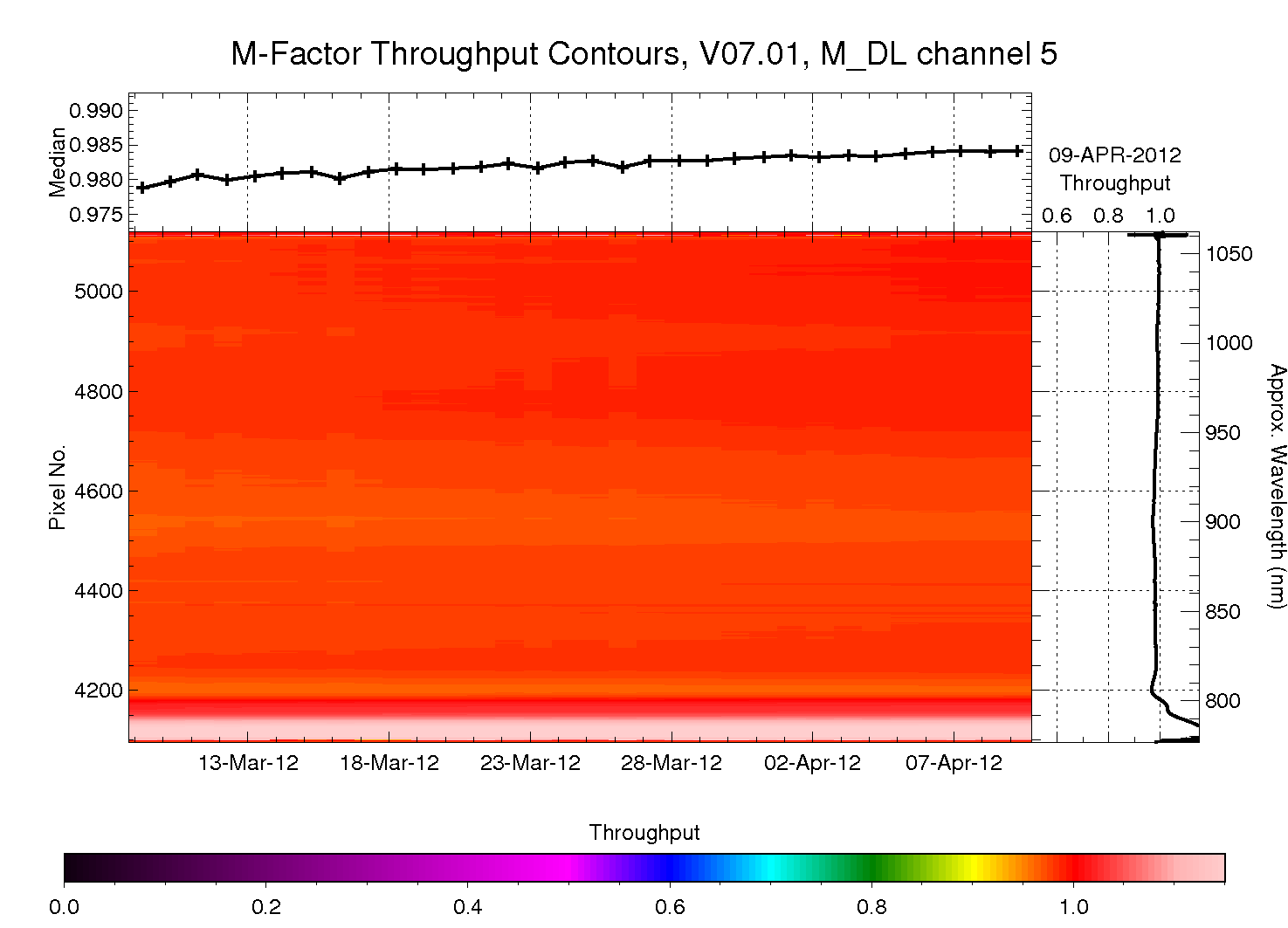

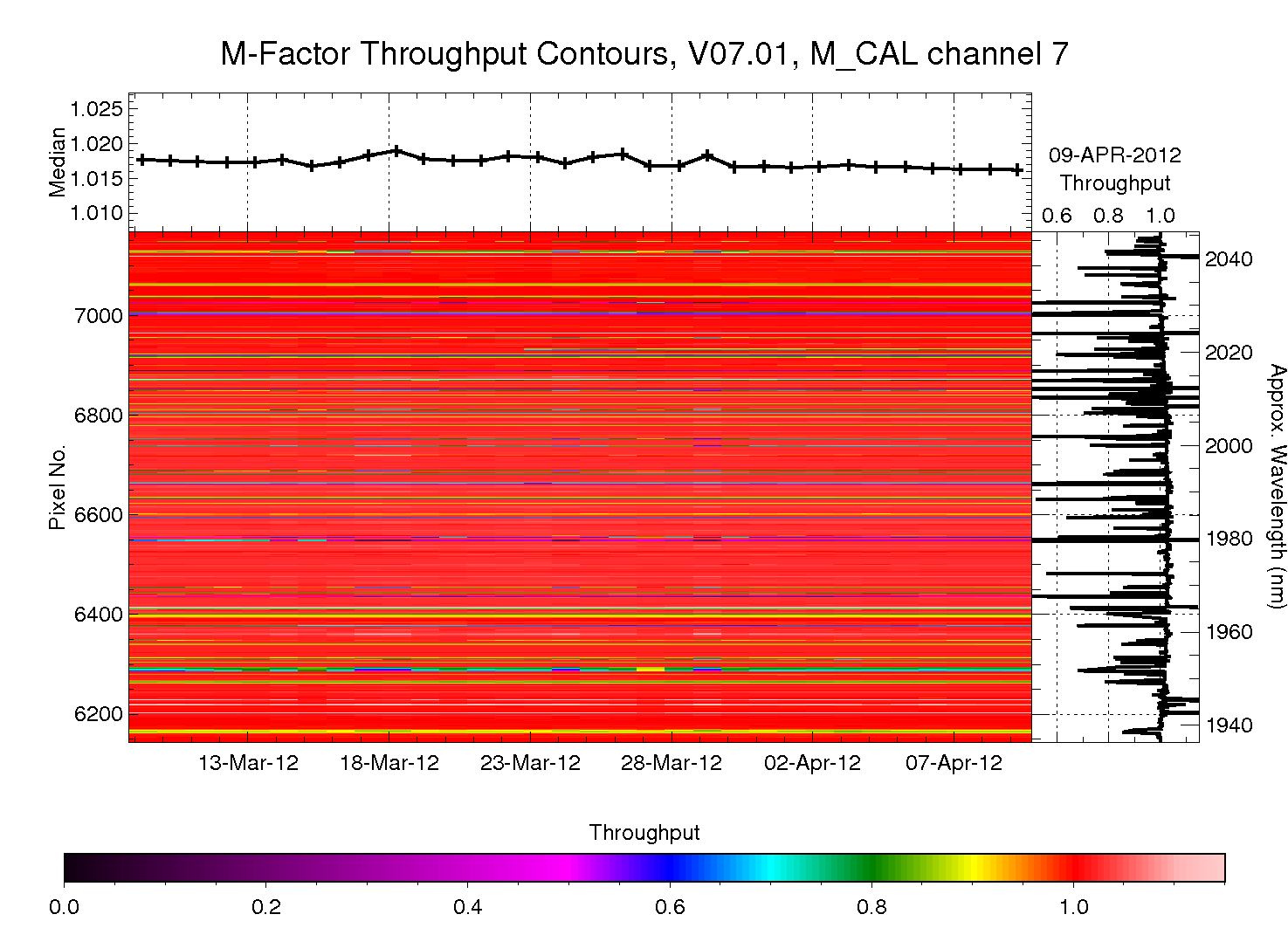

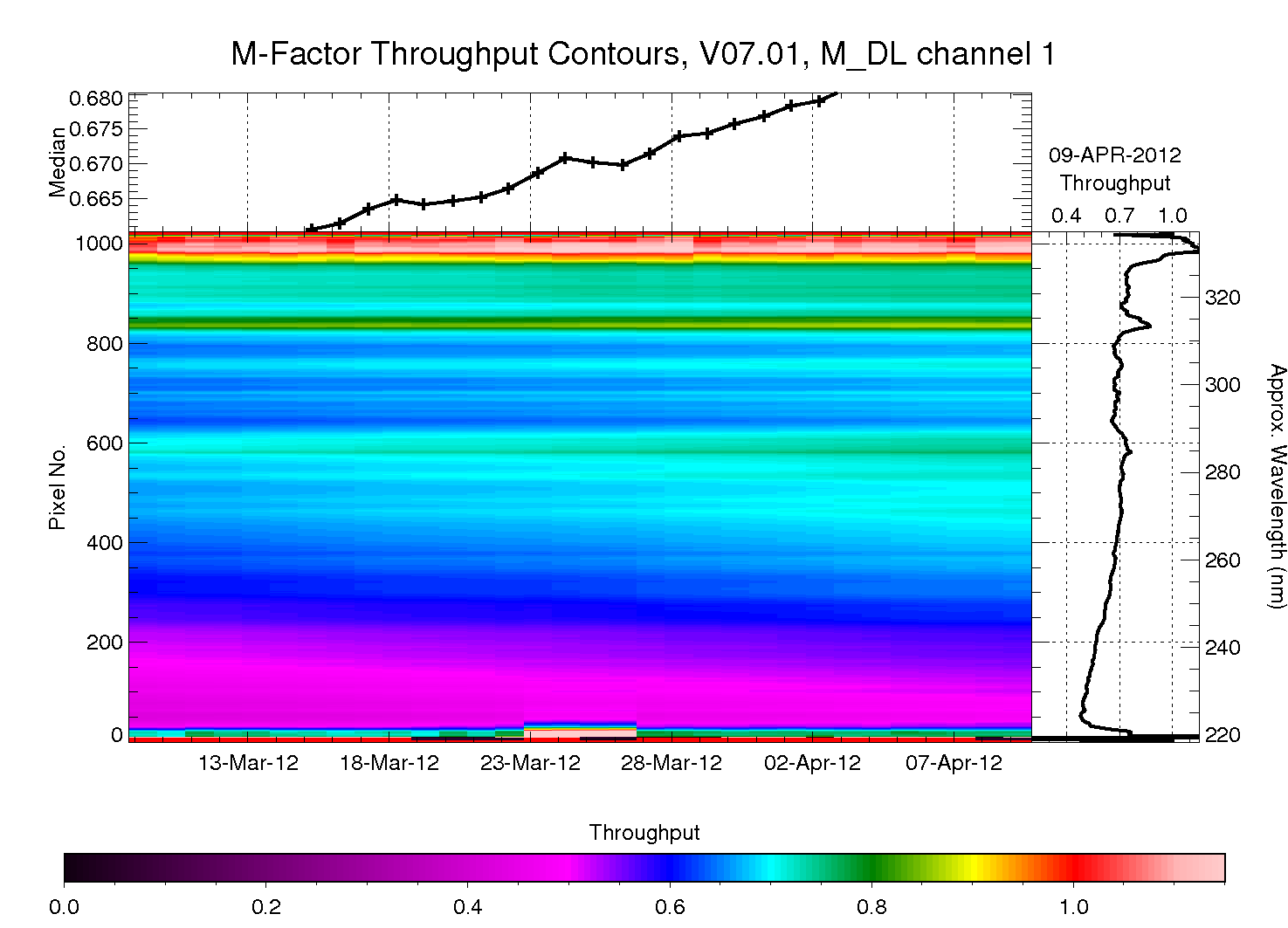

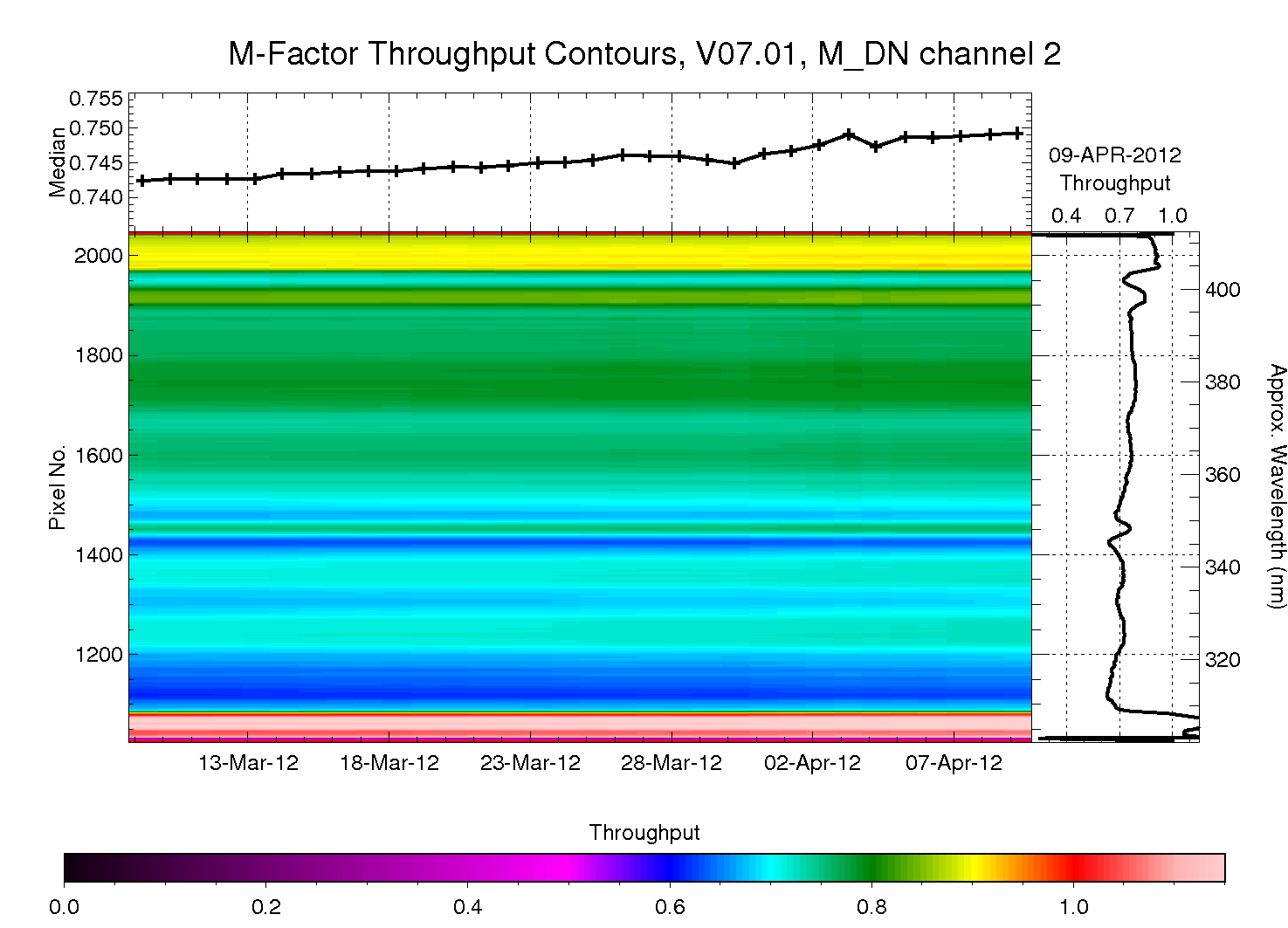

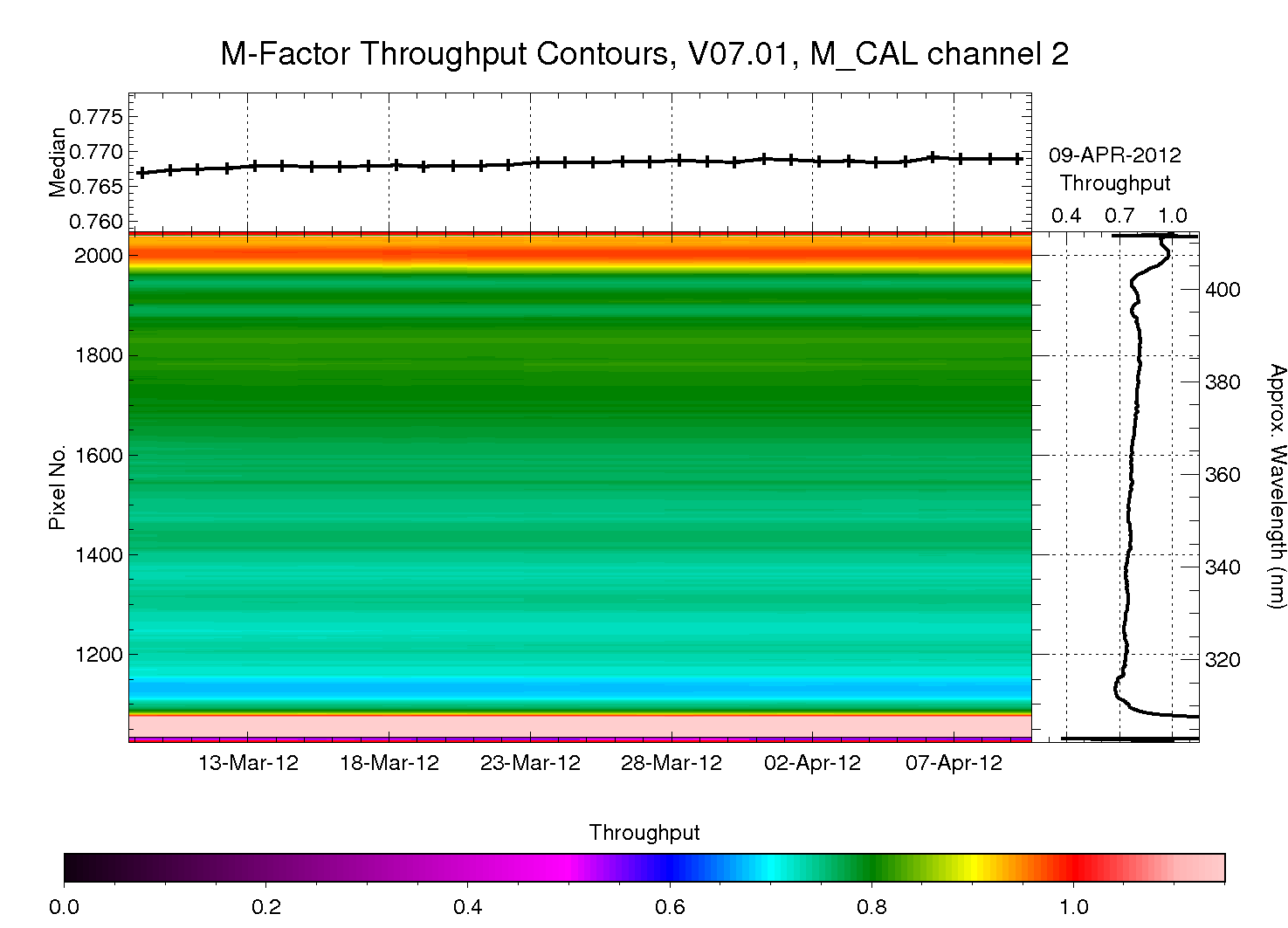

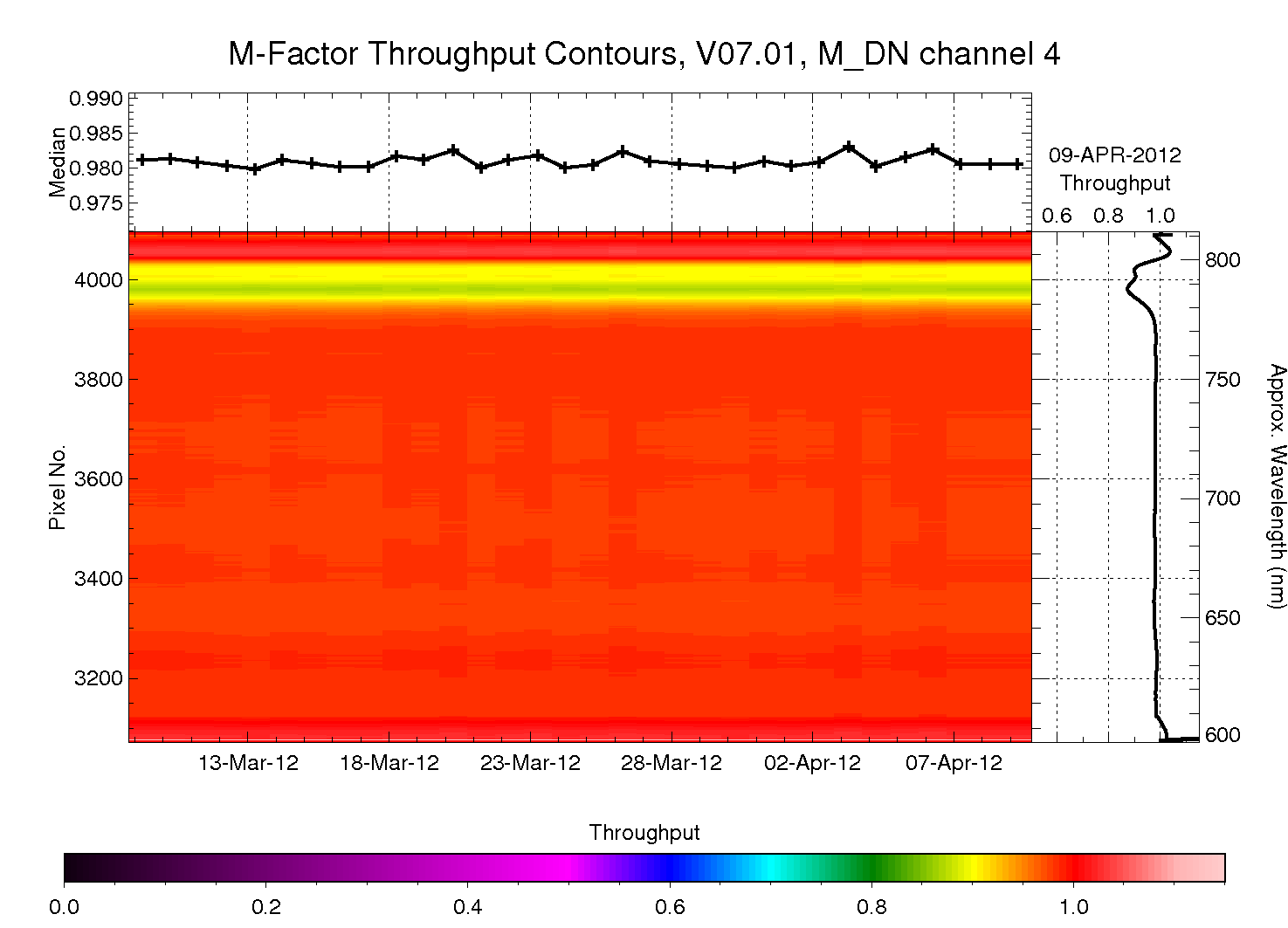

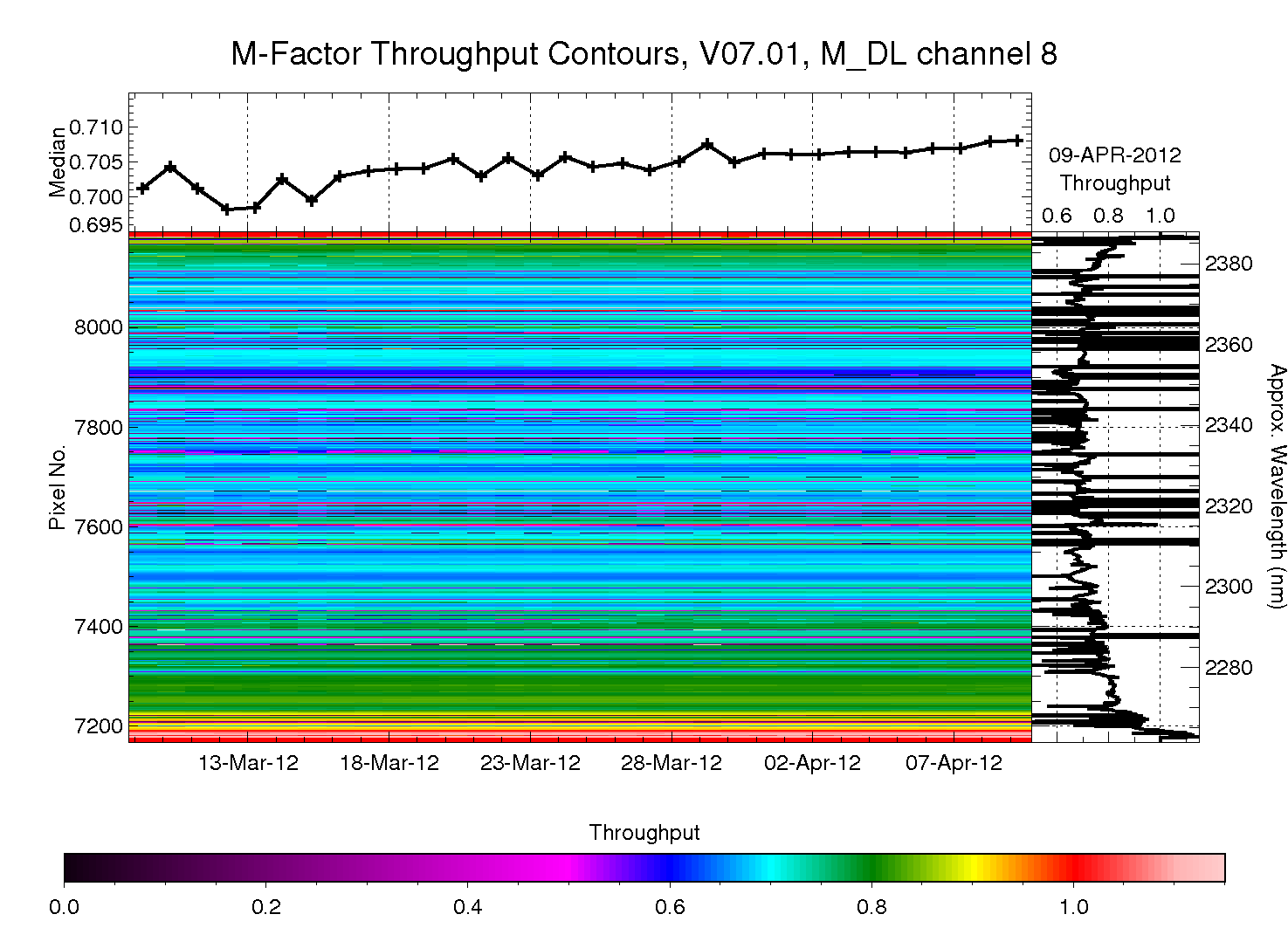

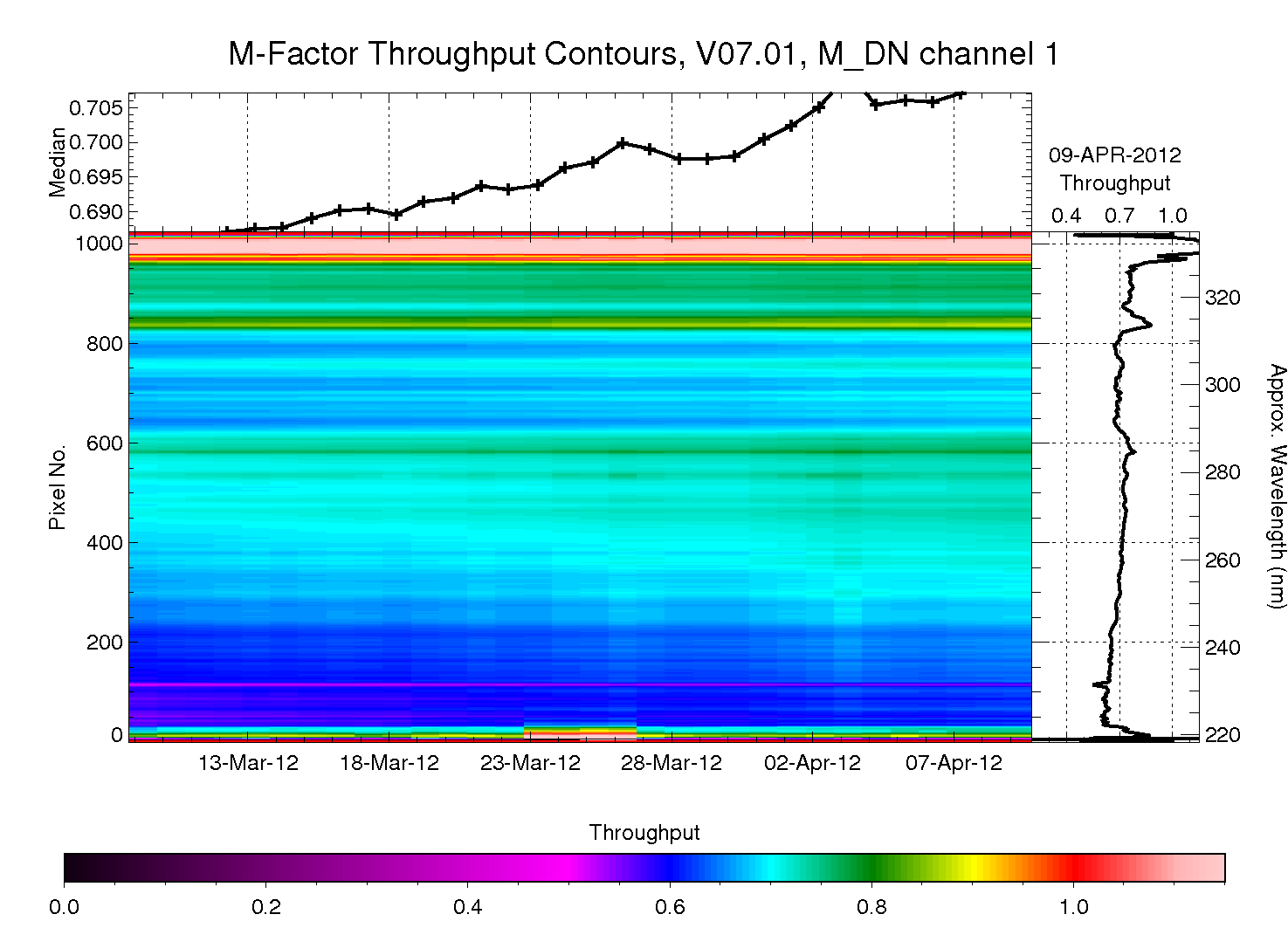

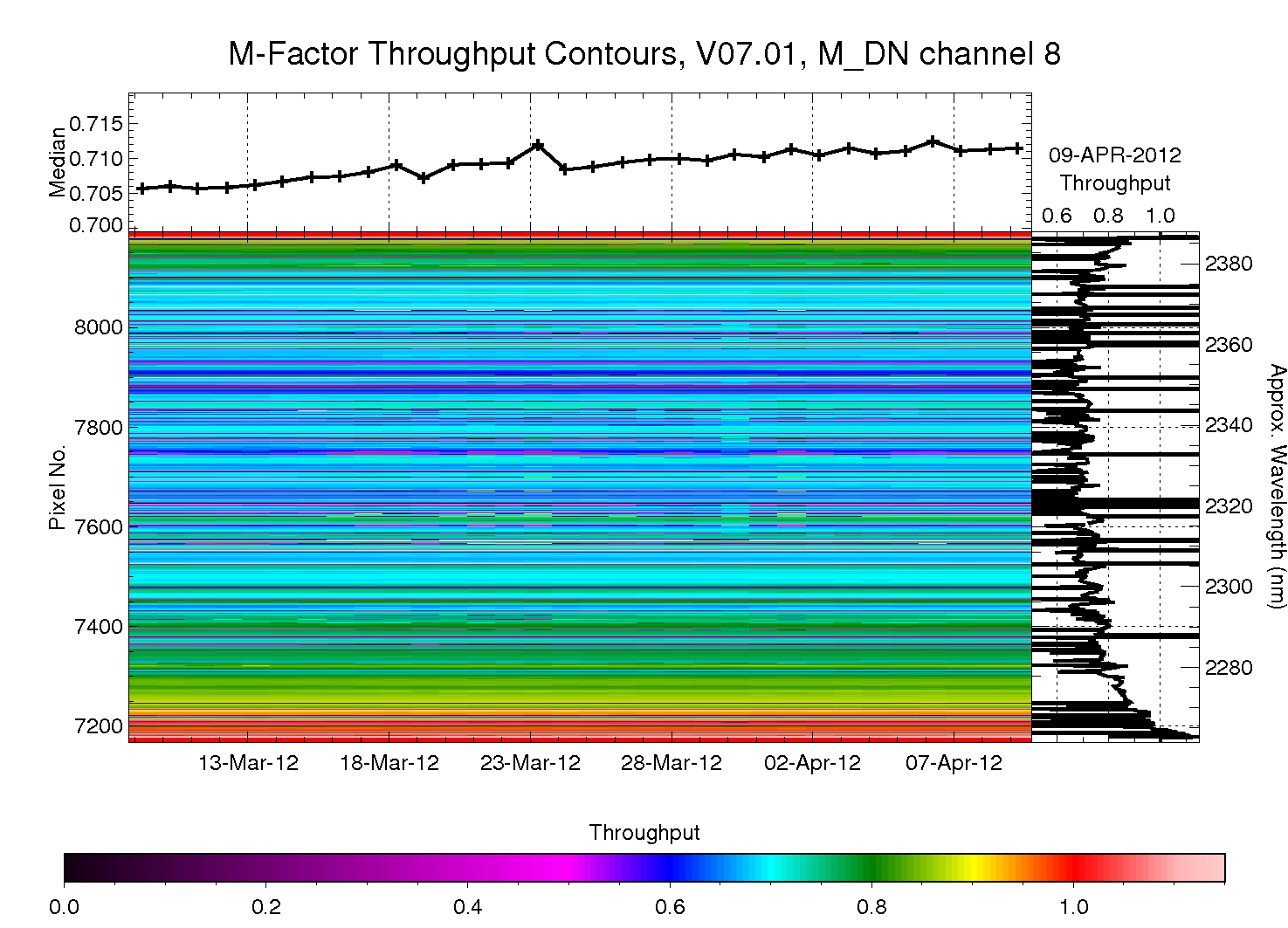

The full plots consist of three main areas: The central part is the contour plot of the degradation. On top of it is the median of the degradation over the detector pixels plotted, showing the overall behaviour of the channel. The median is zoomed in to make the short term variation visible. Right of the main area, the degradation of the last plotted day is shown. The grey bars in the plot are times of instrument unavailabilities (no data at all or the instrument was not in nominal state).
PDF files with all figures are available below.
The full plots are also available as PDF document for printout:
If you are interested in more information on SCIAMACHY m-factors
contact Klaus
Bramstedt or Stefan
Noël.
Author of this page: Klaus Bramstedt and Stefan Noël.
