IO Spectra

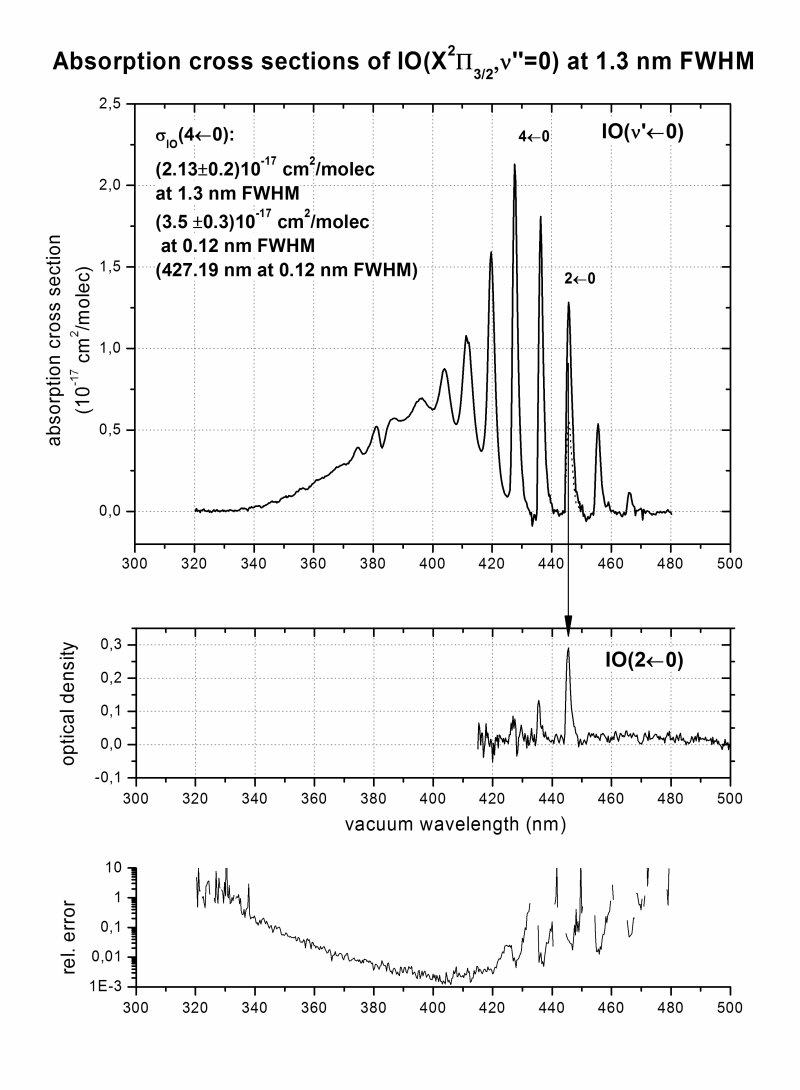

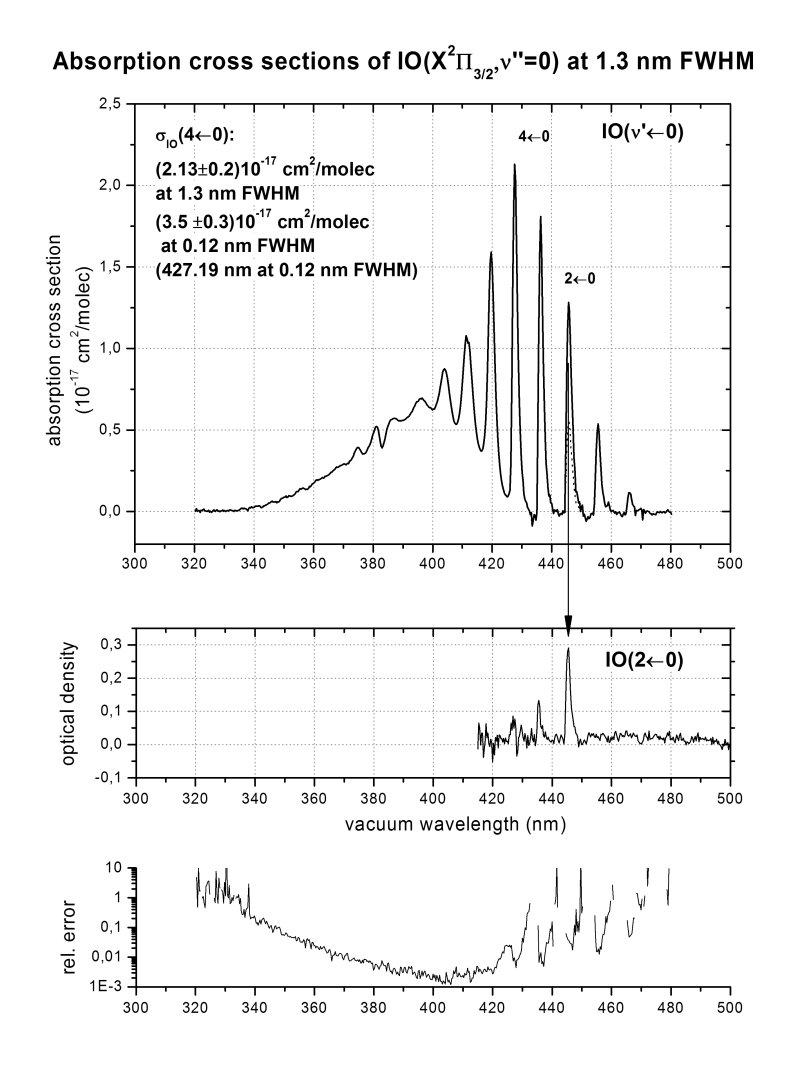

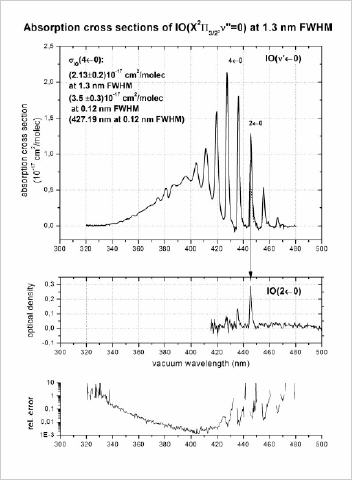

1) Absorption cross section spectrum for ground state iodine monoxide IO(v'←0) at 298K, measured at 1.3nm FWHM

RefSpec_1.3nmFWHM_IOgroundstate_IUPBremen
RefSpec_1.3nmFWHM_IOgroundstate_IUPBremen (click to enlarge)

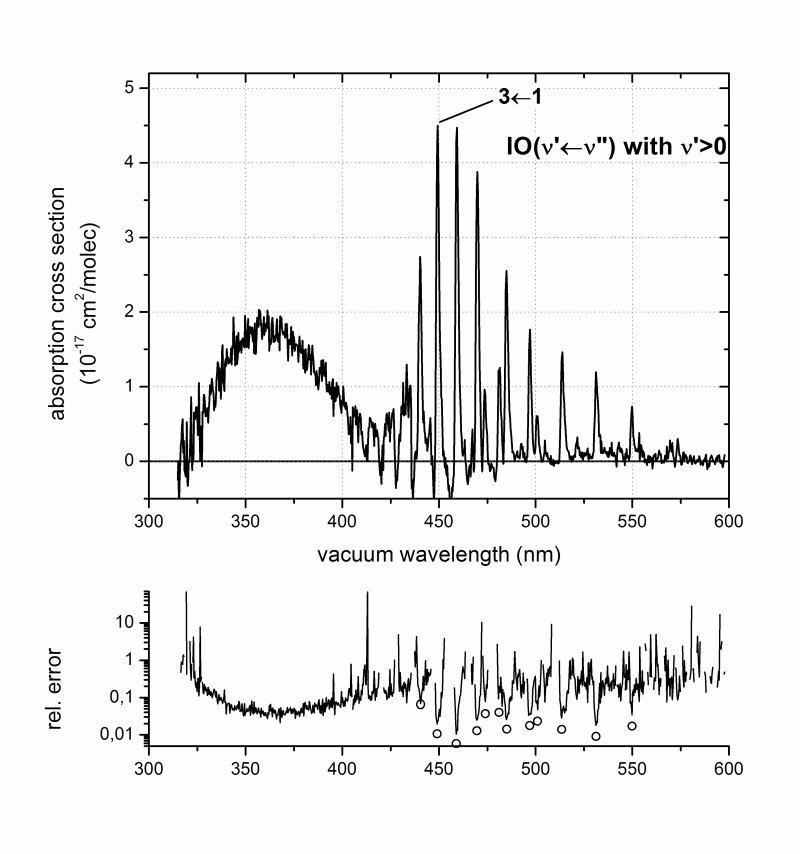

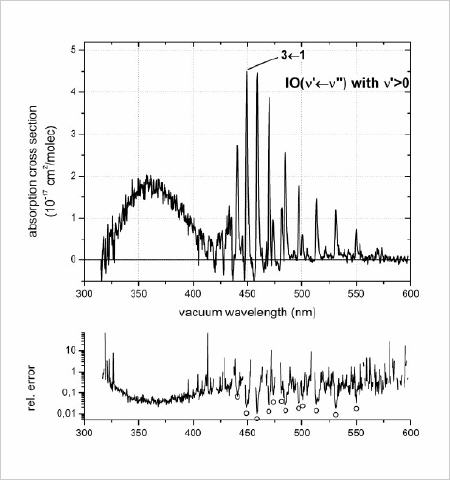

2) Absorption cross section spectrum for vibrationally excited iodine monoxide IO(v'←v") at 298K, measured at 1.3nm FWHM

RefSpec_1.3nmFWHM_IOexcitedstate_IUPBremen
RefSpec_1.3nmFWHM_IOexcitedstate_IUPBremen (click to enlarge)

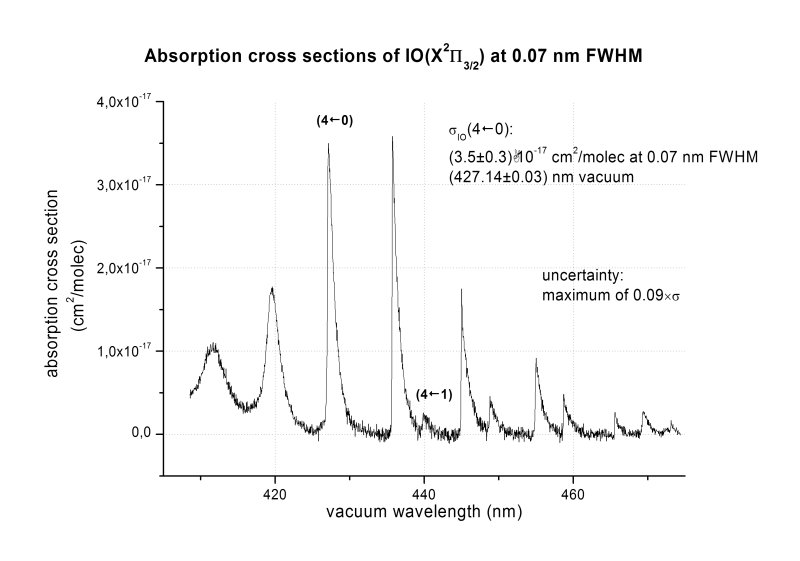

3) Absorption cross section spectrum for iodine monoxide IO(v'←v") at 298K, measured at 0.07nm FWHM

RefSpec_0.07nmFWHM_IO_IUPBremen
RefSpec_0.07nmFWHM_IO_IUPBremen (click to enlarge)

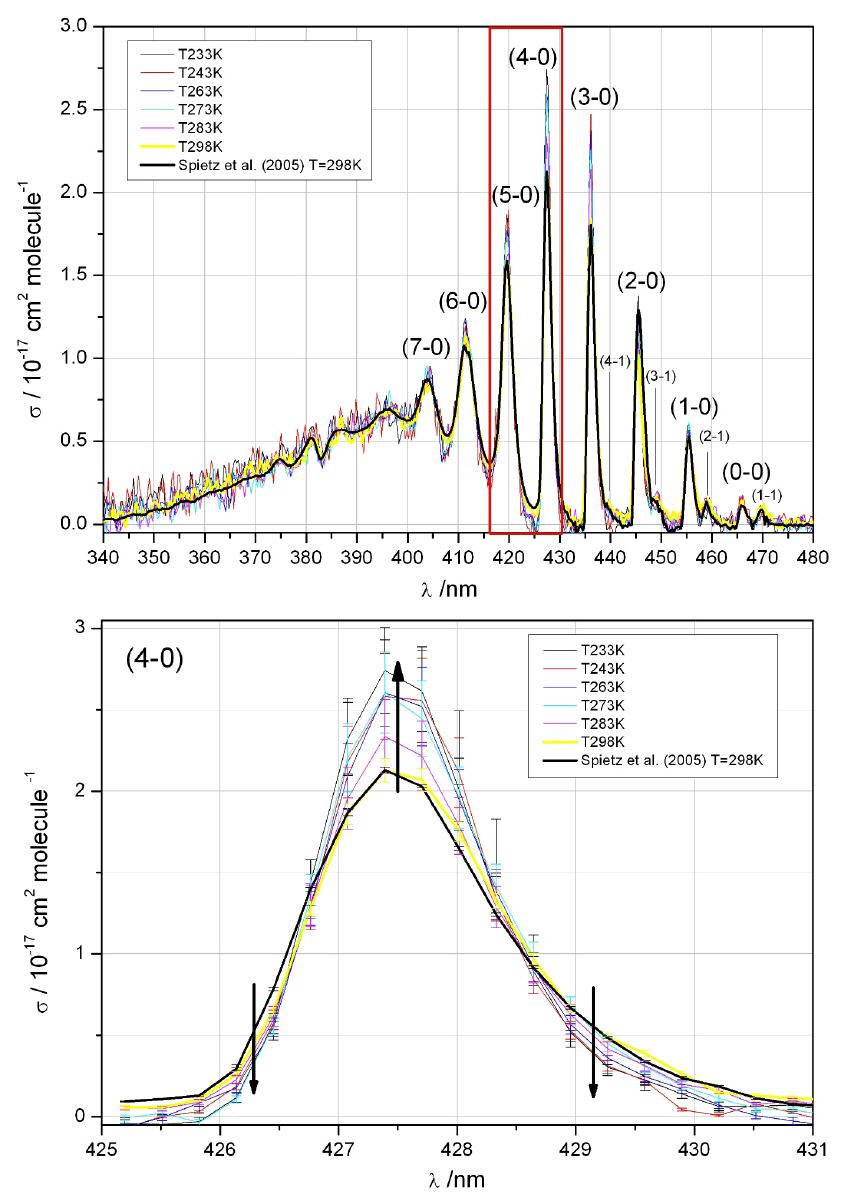

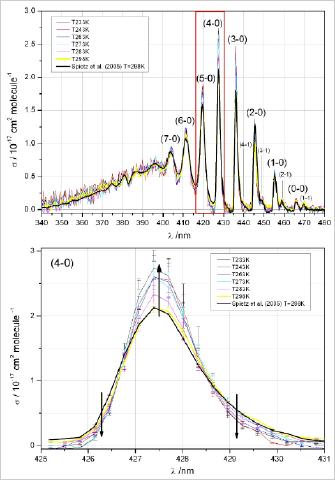

4) Absorption cross section spectra for iodine monoxide IO(v'<-v") at six different temperatures (in the range from 233K to 298K), measured at 1.3nm FWHM

  • Important notice: These absorption spectra are preliminary. The resolution of about 1.3 nm is insufficient for atmospheric retrieval. The temperature dependent cross sections are useful for estimating the temperature influence on the retrieved IO amount if atmospheric conditions differ strongly from the respective temperature used in the laboratory measurements.Background information on these spectra is available online as Supplementary Material to an ACP paper on IO and BrO satellite observations above Antarctica at:
  • http://www.atmos-chem-phys.net/12/6565/2012/acp-12-6565-2012-supplement.pdf.
refspec1.3nmfwhmiotemperaturesiupbremen
refspec1.3nmfwhmiotemperaturesiupbremen (click to enlarge)
