November 2020:

This figure (Figure 3 of Gier et al. (2020)) shows the global mean timeseries of monthly mean column-averaged dry-air mole fraction of CO2 (XCO2) for satellite observations and model data from emission driven runs of Earth System Models (ESMs) participating in the Coupled Model Intercomparison Project Phase 6 (CMIP6, Eyring et al. (2016)) and CMIP5 (Taylor et al., 2012). The models are sampled as the satellite observations (Buchwitz et al., 2018), with the panels showing the timeseries (top), the monthly growth rate (middle), and the seasonal cycle (bottom). For CMIP6 all available ensemble members, i.e. runs started from different points of the pre-industrial control simulation, are used to show the intrinsic variability of the models. The multi-model mean includes only the first ensemble member of each model, to not skew the result towards models with many ensemble members. In most cases ensemble members show a similar behavior to one another. The spread in the total value of the global mean has not been reduced by much in CMIP6 compared to CMIP5, although the multi-model mean bias has been reduced from +10ppmv to +2ppmv. The multi-model mean has a slight positive offset for the growth rate, which quantifies how fast the CO2 concentration is rising. The timeseries shows a clear seasonal cycle due to the absorption of CO2 by plants for photosynthesis in the summer, and a release of CO2 through respiration in the winter, which are both dominated by larger vegetated areas in the northern hemisphere. The CMIP6 models show a large improvement compared to CMIP5 in their ability to reproduce the seasonal cycle seen in the satellite observations.

The artifact in the growth rate in 2009 is due to the start of data coming from a second satellite, whose timeseries shows a differently shaped seasonal cycle and thus influences the growth rate due to the computation method employed here. In the annual mean growth rate this artifact is averaged out. Further sampling characteristics are discussed in Gier et al. (2020), such as the introduction of a strong negative trend in seasonal cycle amplitude with increasing XCO2 due to the spatial sampling of the satellite data. This figure was made using the Earth System Model Evaluation Tool v2 (ESMValTool, (Eyring et al., 2020; Righi et al., 2020) and will be included in the v2.2 release. The ESMValTool includes many diagnostics to use with CMIP models and observations, as well as common preprocessor functions, such as the computation of multi-model means, area averages, and the derivation of custom variables, which were used for this work. Further analysis of an updated satellite dataset is part of the Climate-Carbon Interactions in the Current Century (4C) project, which is funded by the EU under the Horizon 2020 program.

Related projects:

Advanced Earth System Model Evaluation for CMIP (Eval4CMIP)
Climate-Carbon Interactions in the Current Century (4C)
Coupled Model Intercomparison Project (CMIP)

Further reading:

Buchwitz, M., Reuter, M., Schneising, O., Noel, S., Gier, B., Bovensmann, H., Burrows, J. P., Boesch, H., Anand, J., Parker, R. J., Somkuti, P., Detmers, R. G., Hasekamp, O. P., Aben, I., Butz, A., Kuze, A., Suto, H., Yoshida, Y., Crisp, D., and O'Dell, C.: Computation and analysis of atmospheric carbon dioxide annual mean growth rates from satellite observations during 2003-2016, Atmos Chem Phys, 18, 1-22, 10.5194/acp-18-17355-2018, 2018.

Eyring, V., Bony, S., Meehl, G. A., Senior, C. A., Stevens, B., Stouffer, R. J., and Taylor, K. E.: Overview of the Coupled Model Intercomparison Project Phase 6 (CMIP6) experimental design and organization, Geosci Model Dev, 9, 1937-1958, 10.5194/gmd-9-1937-2016, 2016.

Eyring, V., Bock, L., Lauer, A., Righi, M., Schlund, M., Andela, B., Arnone, E., Bellprat, O., Brötz, B., Caron, L. P., Carvalhais, N., Cionni, I., Cortesi, N., Crezee, B., Davin, E. L., Davini, P., Debeire, K., de Mora, L., Deser, C., Docquier, D., Earnshaw, P., Ehbrecht, C., Gier, B. K., Gonzalez-Reviriego, N., Goodman, P., Hagemann, S., Hardiman, S., Hassler, B., Hunter, A., Kadow, C., Kindermann, S., Koirala, S., Koldunov, N., Lejeune, Q., Lembo, V., Lovato, T., Lucarini, V., Massonnet, F., Müller, B., Pandde, A., Pérez-Zanón, N., Phillips, A., Predoi, V., Russell, J., Sellar, A., Serva, F., Stacke, T., Swaminathan, R., Torralba, V., Vegas-Regidor, J., von Hardenberg, J., Weigel, K., and Zimmermann, K.: Earth System Model Evaluation Tool (ESMValTool) v2.0 – an extended set of large-scale diagnostics for quasi-operational and comprehensive evaluation of Earth system models in CMIP, Geosci. Model Dev., 13, 3383-3438, 10.5194/gmd-13-3383-2020, 2020.

Gier, B. K., Buchwitz, M., Reuter, M., Cox, P. M., Friedlingstein, P., and Eyring, V.: Spatially resolved evaluation of Earth system models with satellite column averaged CO2, Biogeosciences Discuss., 2020, 1-40, 10.5194/bg-2020-170, accepted, 2020.

Righi, M., Andela, B., Eyring, V., Lauer, A., Predoi, V., Schlund, M., Vegas-Regidor, J., Bock, L., Brötz, B., de Mora, L., Diblen, F., Dreyer, L., Drost, N., Earnshaw, P., Hassler, B., Koldunov, N., Little, B., Loosveldt Tomas, S., and Zimmermann, K.: Earth System Model Evaluation Tool (ESMValTool) v2.0 – technical overview, Geosci. Model Dev., 13, 1179-1199, 10.5194/gmd-13-1179-2020, 2020.

Taylor, K. E., Stouffer, R. J., and Meehl, G. A.: An Overview of CMIP5 and the Experiment Design, Bulletin of the American Meteorological Society, 93, 485-498, 10.1175/bams-d-11-00094.1, 2012.

Oktober 2020:

Record low ozone above the Arctic during spring 2020:

This year very low total ozone was observed in March over a large part of the Arctic. Compared to one year before total ozone levels were up to 200 DU lower this year. These low ozone levels were observed in a strong cyclone in the lower stratosphere (~20 km altitude), called the polar vortex. Temperatures inside such a cyclone are sufficiently low to form polar stratospheric clouds that activate halogens from their reservoir species and resulting in substantial chemical depletion (polar ozone loss) in late winter and early spring. Such conditions are very typical during Antarctic winter/spring (“Antarctic ozone hole”) but occur sporadically in the Arctic. A similar event in the northern hemisphere was last observed in March 2011 nine years ago. Total ozone columns regulate how much harmful UV radiation can reach the surface. We retrieved the total ozone using spectral measurements from the TROPOMI instrument aboard the Sentinel 5 Precursor satellite launched in October 2017. Our analysis showed that the minimum total ozone column north of 50°N were at a record low throughout March and April 2020. While global ozone levels are slowly recovering due to the slow decline in man-made stratospheric halogens following the phase-out of ozone-depleting substances regulated by the Montreal Protocol and Amendments, such extreme events will likely happen again, about once per decade in the future.

Mark Weber (

September 2020:

The sources and sinks of methane (CH4) in tropical rainforests are still a large source of uncertainty, and flux measurements are rare. In October 2018, INPA (National Institute for Amazonian Research, Manaus) and IUP started collaborative measurements, focusing on ecosystem CH4 flux measurements. An FTIR-analyzer, measuring CO2, CO, CH4, N2O and δ13CO2, was installed at a 50 m flux tower, measuring fluxes and concentrations of CH4. In addition, by use of a portable instrument, CH4 and CO2 flux measurements of soil, water, trees and termites were performed. Preliminary results show that the ecosystem is a small but constant source of methane, and reveal the possible large role termites play in this ecosystem.

Juni 2020:

(größer per Klick)
(größer per Klick) Carbon monoxide emissions from industrial facilities

Carbon monoxide emissions from industrial facilities

The TROPOspheric Monitoring Instrument (TROPOMI) onboard the Sentinel-5 Precursor satellite allows for the analysis of several atmospheric species, including carbon monoxide (CO) and methane (CH4), with an unprecedented level of detail by combining high precision and spatial resolution with daily global coverage.

The figure shows the CO distribution for November and December 2018 over China, India, and Southeast Asia highlighting emissions of congested urban areas and industrial facilities. The 2-month-average was chosen to get an overview of the complete region. Typically, large emission sources can even be detected in a single satellite overpass. The tracked facilities mainly belong
to the Chinese and Indian iron and steel industry. CO enhancements due to emissions from steel works are also detected in other regions of the world, for example in Turkey and Poland.

In steelmaking CO is formed during two processes. Firstly, it is an essential constituent of the blast furnace gas, which emerges when iron ore is reduced with coke to metallic pig iron. As the resulting pig iron has a relatively high carbon content, further processing is necessary to harden the metal. Therefore, the carbon-rich molten pig iron is converted to steel by lowering its carbon content via oxidation in the oxygen converter process (Linz-Donawitz-steelmaking). The resulting converter gas predominantly consists of CO.

Schneising, O., Buchwitz, M., Reuter, M., Bovensmann, H., Burrows, J. P., Borsdorff, T., Deutscher, N. M., Feist, D. G., Griffith, D. W. T., Hase, F., Hermans, C., Iraci, L. T., Kivi, R., Landgraf, J., Morino, I., Notholt, J., Petri, C., Pollard, D. F., Roche, S., Shiomi, K., Strong, K., Sussmann, R., Velazco, V. A., Warneke, T., and Wunch, D.: A scientific algorithm to simultaneously retrieve carbon monoxide and methane from TROPOMI onboard Sentinel-5 Precursor, Atmos. Meas. Tech., 12, 6771–6802,, 2019.

April 2020:

Stratospheric aerosols are an essential component of the climate system. Firstly, they change the radiative budget of the Earth, and secondly, they play an important role in ozone depletion. There is a background stratospheric aerosol layer build by the sulfuric gas emissions from the ocean surface; however, this layer is occasionally perturbed by volcanic eruptions which emit aerosol precursors directly in the stratosphere.

In the figure above, the changes in stratospheric aerosol loading after the 2018 eruption of Ambae are shown. Ambae, a volcanic island in South Pacific (Vanuatu), continuously erupted for over a year in 2017-2018; and it was the strongest volcanic eruption in the world for those two years. There were two eruption episodes when sulfuric gases reached the stratosphere, namely, on April 6 and on July 28, 2018. In the figure above, 10-day averaged aerosol extinction coefficient at 869 nm retrieved from OMPS-LP data is presented at 18.5 km (panel (a)) and at 20.5 km (panel (b)) as a function of latitude and time. The location and time of the eruption are marked by the black triangles. There is a slight increase in the aerosol extinction coefficient at 18.5 km after the fist, smaller eruption. At the same time, the increase after the second eruption is much larger; this is because the triple amount of precursor gases was emitted during the July episode. For both eruptions, the increase becomes noticeable right after the precursors were emitted, but the plume intensifies in about a month. This corresponds to the time needed for oxidation of the precursors to aerosols.

In particular after the second eruption, aerosols are not only localized in the tropics and are transported in the higher latitudes. Thus, the volcanic impact is seen at 18.5 km at 45°, both North and South, in late December 2018. In the tropics, at that time, the plume starts to dissipate; however, it still does not vanish completely. Such distribution of a volcanic plume is typical for a tropical eruption, as the Brewer-Dobson circulation moves the stratospheric air masses polewards from the equator.

Another resulting pattern of the Brewer-Dobson is aerosol distribution at 20.5 km. There, the increase after the first eruption is rather small; it appears in mid-May and lasts until the second eruption. The delay by approximately 1.5 months in the extinction increase at the higher altitudes is caused by convection. The lofting air in the tropics transports the aerosols and their precursors upwards. The time lag until the perturbation reaches higher altitudes is often referred to as a tape-recorder effect. After the second eruption, the plume appears at 20.5 km with 6-7 weeks delay as well. At this altitude, the maximal extension of the volcanic plume is achieved in November-December 2018. At the very end of 2018, the aerosols are transported to the higher latitudes, and the plume starts to dissipate.

This study shows the global impact of tropical volcanic eruptions. Even though their radiative forcing might be lower than for the extratropical eruptions of the same magnitude, the effect is seen all over the globe and does not stick to a particular location.

Reference: Malinina, E., Rozanov, A., Niemeier, U., Peglow, S., Arosio, C., Wrana, F., Timmreck, C., von Savigny, C. and Burrows, J. P. : Changes in stratospheric aerosol extinction coefficient after the 2018 Ambae eruption as seen by OMPS-LP and ECHAM-HAM, to be submitted in ACP in May 2020.

März 2020:

Figure: Example of long-range transport of fire emissions. Panels (a),(b),(d), and (e) show the glyoxal, formaldehyde, nitrogen dioxide, and carbon monoxide columns, respectively, retrieved from Sentinel 5 precursor measurements for 10 August 2018. Note that CO columns are unfiltered and only represent a qualitative description of the plume. Panel (c) depicts the calculated CHOCHO-to-HCHO ratio (RGF) for the same day. Panel (f) shows a true-colour image of the aerosol distribution from VIIRS for 10 August 2018.

Wild fires are known to emit large quantities of trace gases and aerosols into the atmosphere, resulting in air pollution in the vicinity of the fires but often also at long distances downwind of the fires. In August 2018, unusually high temperatures caused severe drought in some areas of North America and resulted in the outbreak of many wildfires: the province of British Columbia (BC) in Canada was one of the most affected areas. Some of these fires were large enough to create enough heat to lift the emissions into the free troposphere where they were transported over long distances.

Measurements of the TROPOMI instrument on the European Sentinel 5 precursor satellite can be used to retrieve the column amounts of several trace gases emitted by wild fires (see figure). On August 10, 2018, a huge plume of particles and gases emitted from several big fires was covering large parts of North America, extending more than 1500 km from the location of the fires. While long-range transport of carbon monoxide (CO) has already been observed on many occasions, long-range transport of short-lived volatile organic compounds (VOCs) such as formaldehyde (HCHO) and glyoxal (CHO.CHO) is not expected as transport times are longer than the atmospheric residence time of these gases. However, the measurements show that also HCHO and CHO.CHO are present in the plume for at least a day, and comparison with FLEXPART transport modelling indicates effective lifetimes of the order of 30 hours. These unexpected observations are best explained by continuous production of HCHO and CHO.CHO from long-lived precursors in the plume, the nature of which still needs to be investigated.

This study highlights the importance of wild fires for air quality both locally and at a distance, an important aspect in a changing climate where hot and dry years such as 2018 are expected to become more frequent, resulting in more and bigger fires. It also demonstrates the power of S5P satellite observations which provide global trace gas column maps with high spatial resolution.

Alvarado, L. M. A., Richter, A., Vrekoussis, M., Hilboll, A., Kalisz Hedegaard, A. B., Schneising, O., and Burrows, J. P.: Unexpected long-range transport of glyoxal and formaldehyde observed from the Copernicus Sentinel-5 Precursor satellite during the 2018 Canadian wildfires, , 20, 2057–2072,, 2020.

Februar 2020:

Recent work at the Institute of Environmental Physics exploits the potential of the satellite instrument POLDER which was using multi-spectral and multi-viewing capabilities, for the retrieval of suspended liquid or solid particles in air (also known as aerosols), as well as surface properties.

The image shows the Aerosol Optical Depth (AOT) which is an important parameter describing the overall atmospheric aerosol burden. The study aims at retrieving AOT and surface reflectance at high quality which are important quantities for the modeling community as well as crucial parameters for air quality assessment from space. The agreement of the first results with ground-based measurements, as shown in the figure is very promissing: the color-coded points at the center of each station are close to the retrieved values based on satellite data.

This is of particular relevance because within the next decade a fleet of upcoming satellite instruments will provide measurements similar to POLDER which can be evaluated with the newly developed methodology.

Reference: Marco Vountas, Kristina Belinska, Vladimir V. Rozanov, Luca Lelli, Linlu Mei, Soheila Jafariserajehlou, John P. Burrows, "Retrieval of aerosol optical thickness and surfaceparameters based on multi-spectral and multi-viewing space-borne measurements" (2020).

November 2019:

(größer per Klick)
(größer per Klick)

Average global distribution of diffuse attenuation coefficient at the excitation wavelength region 390 to 426 nm (Kd(λext)) from Feb until Dec 2007. The diffuse attenuation coefficient is a measure of how deep the sunlight penetrates the ocean. It helps characterizing the underwater light field which is important for estimating the heat budget and primary production in the global oceans. The diffuse attenuation coefficient was derived from three atmospheric satellite sensors SCIAMACHY, GOME-2, and OMI by retrieving vibrational Raman scattering fit factors using Differential Optical Absorption Spectroscopy and converting these to Kd(λext) via Look-up-Tables based on radiative transfer modeling. The standard diffuse attenuation product OC-CCI (Kd490) as obtained from multispectral ocean color satellites was converted to the excitation wavelength region and is shown in comparison. Figure adapted from Oelker et al. (2019).

Recent work at the Institute of Environmental Physics exploits the potential of TROPOMI for ocean applications in a project funded by ESA and led by the Alfred-Wegener-Institute in Bremerhaven (S5POC, TROPOMI is a satellite sensor on board Sentinel-5P, a recent atmospheric satellite mission launched in October 2017 dedicated for detecting atmospheric trace gases such as ozone and nitrogen dioxide. The possibility to derive diffuse attenuation in the blue and additionally in the ultraviolet region ofthe solar spectrum, as well as the quantification of different phytoplankton groups and the fluorescence signal of phytoplankton will be explored.

Reference:Julia Oelker, Andreas Richter, Tilman Dinter, Vladimir V. Rozanov, John P. Burrows, and Astrid Bracher, "Global diffuse attenuation derived from vibrational Raman scattering detected in hyperspectral backscattered satellite spectra," Opt. Express 27, A829-A855 (2019).

Oktober 2019:

Forschungsmeile 2019

Am 21. und 22. September war es wieder soweit: Im Rahmen der Maritimen Woche 2019 fand an der Weserpromenade „Schlachte“ erneut eine „Forschungsmeile“ statt, natürlich auch diesmal mit IUP-Beteiligung. Die Arbeitsgruppen Physik und Chemie der Atmosphäre und Fernerkundung präsentierten der Öffentlichkeit aktuelle Forschungsergebnisse u.a. zur Beobachtung von Meereis, Luftverschmutzung und Klimagasen durch Satelliten. Neben dem beliebten „Eiswürfelexperiment“ (Wo schmilzt ein Eiswürfel schneller, ins Süßwasser oder Meerwasser?) konnten die Besucher diesmal auch vor Ort die CO2 und Methan-Konzentrationen in ihrem Atem messen. Das herrliche Wetter sorgte für zahlreiche Interessierte, so dass die diesjährige Forschungsmeile für alle Beteiligten als Erfolg gewertet werden kann.

Kontakt: Stefan Noël (

September 2019:

Bild (a)
Bild (a)
Bild (b)
Bild (b)

The September picture of the month shows the modelling of methane dispersion using FLEXPART-WRF.

Methane is an important greenhouse gas. Getting extended knowledge about the sinks and sources is therefore an important task. Modelling the transport of emissions can help a) to plan future measurement campaigns and, b) in combination with measurements, to validate the given emission estimates.

The Upper Silesian Coal Basin is a coal basin in Silesia (Poland, Czech Republic). It contains numerous mines exploiting its large coal reservoirs. When the coal is extracted from the earth, considerable amounts of methane are released, which is extracted from the underground mines and released into the atmosphere through venting shafts. The methane emitted from the Upper Silesian Coal Basin constitutes a regionally significant source.

The fact that the emission takes place at a limited number of well-known locations allows for detailed simulation of the dispersion of the emitted methane in the atmosphere. The latter, combined with measurements of the atmospheric methane concentration,can yield important insight into the emitted quantities.

FLEXPART-WRF is a Lagrangian atmospheric transport model which uses meteorological data (e.g., wind fields) from simulations using the Weather Research and Forecast model WRF. Practically, this means that it allows the simulation of atmospheric transport processes at very small spatial scales of on the order of ~100m.

Figures a) – b) show the simulated methane column enhancement (i.e., ignoring the high methane background of the atmosphere) emitted in Upper Silesia on the morning of 29 May 2018. For Image a) wind fields at a spatial resolution of 1km per grid box were used while b) uses wind fields ata spatial resolution of 200m.

One can see considerably finer structured plumes when using the higher spatial resolution. Even if the general shape of the plumes is comparable in both figures, when taking a closer look one can see that at 1km resolution, the detailed shape of the plume is different (it starts turning northwards earlier, i.e., closer to the emission sources, at 200m resolution).

These high-resolution simulations allow better analysis of methane measurements executed by the airborne MaMap instrument during the CoMet campaign in spring 2018 (ongoing work)

Acknowledgements: All simulations were conducted on the Aether HPC cluster at University of Bremen, financed by DFG within the scope of the Excellence Initiative.

August 2019:

(größer per Klick)
(größer per Klick)

Erste Auswertungen von CMIP6 Modellen mit dem ESMValTool: CO2 im Vergleich zu Beobachtungsdaten

Die Abbildung zeigt die CO2und XCO2 (Säulenmittel des Stoffmengenanteils von CO2 in trockener Luft) Zeitserien von 2003 bis 2014 aus Satellitenbeobachtungen, Stationsdaten und dem Mittel zweier Erdsystemmodelle, die am Coupled Model Intercomparison Project Phase 6 (CMIP6) (Eyring et al. 2016a) teilgenommen haben. Der Satellitendatensatz wurde aus Messungen von SCIAMACHY („SCanning Imaging Absorption Spectrometer for Atmospheric ChartographY“) auf Envisat und TANSO-FTS („Thermal And Near infrared Sensor for carbon Observation - Fourier Transform Spectrometer“) auf GOSAT („Greenhouse gases Observing SATellite“) zusammengesetzt. Die Stationsdaten gehören zum NOAA/ESRL (“National Oceanic and Atmospheric Administration/Earth System Research Laboratory”) Datensatz.

Alle Daten wurden mit dem „Earth System Model Evaluation Tool“, (ESMValTool, Eyring et al. (2016c)) prozessiert. Zur Zeit wird die Veröffentlichung einer neuen Version (v2.0) des ESMValTools vorbereitet, die entwickelt wurde um CMIP6 Daten zu analysieren sobald sie im CMIP6 Archiv veröffentlicht sind. Das ESMValTool enthält eine große Sammlung von Diagnosen und Performance-Tests für Variablen aus Atmosphäre, Ozeans und Land anwendbar auf deren Mittel, Trends und Variabilität. Für die Abbildung wurde mit Hilfe des ESMValTools XCO2 (von den Satellitenbeobachtungen angegebene Messgröße) aus den Modellergebnissen berechnet und ihr Sampling wurde den Beobachtungsdaten entsprechend angepasst. Für einen besseren Vergleich des Jahresganges wurden die Modellergebnisse auf einen Offset zu den Satellitendaten korrigiert.

Modelle und Beobachtungen zeigen den erwarteten Anstieg im CO2-Gehalt der Atmosphäre und den charakteristischen Jahresgang. Dieser ist in der Nordhemisphäre am stärksten ausgeprägt, mit niedrigeren Werten im Sommer, wenn durch die verstärkte Photosynthese CO2 absorbiert wird und hohen Werten im Winter, wenn die Photosynthese zum Erliegen kommt und die Vegetation ihre Kohlenstoffspeicher wieder freisetzt. Die Amplitude des Jahresgangs ist bei Modellen und Beobachtungsdaten unterschiedlich. Gründe für diesen Unterschied und mögliche Änderungen des Jahresgangs in der Zukunft werden im Rahmen des durch die Helmholtz Gesellschaft finanzierten Projektes „Advanced Earth System Model Evaluation for CMIP“ (EVal4CMIP) evaluiert. Änderungen im Jahresgang werden wegen des Effekts der CO2-Düngung erwartet (Wenzel et al. 2016). Zur CO2-Düngung und anderen Wechselwirkungen zwischen CO2-Gehalt und Klima werden im Projekt “Climate-Carbon Interactions in the Coming Century” (CCiCC), finanziert durch das EU Horizon 2020 Program neue „Emergent Constraints“ (Eyring et al. 2019) entwickelt. Zusätzlich umfasst dieses Projekt die Analyse neuer Datensätze sowie Empfehlungen für Modellverbesserungen und Beobachtungsstrategien.


Advanced Earth System Model Evaluation for CMIP (EVal4CMIP)

Climate-Carbon Interactions in the Coming Century (CCiCC)

Coupled Model Intercomparison Project (CMIP)


Buchwitz, M., Reuter, M., Schneising, O., Noel, S., Gier, B., Bovensmann, H., Burrows, J.P., Boesch, H., Anand, J., Parker, R.J., Somkuti, P., Detmers, R.G., Hasekamp, O.P., Aben, I., Butz, A., Kuze, A., Suto, H., Yoshida, Y., Crisp, D., & O'Dell, C. (2018). Computation and analysis of atmospheric carbon dioxide annual mean growth rates from satellite observations during 2003-2016. Atmospheric Chemistry and Physics, 18

Eyring, V., Bony, S., Meehl, G.A., Senior, C.A., Stevens, B., Stouffer, R.J., & Taylor, K.E. (2016a). Overview of the Coupled Model Intercomparison Project Phase 6 (CMIP6) experimental design and organization. Geoscientific Model Development, 9, 1937-1958

Eyring, V., Cox, P.M., Flato, G.M., Gleckler, P.J., Abramowitz, G., Caldwell, P., Collins, W.D., Gier, B.K., Hall, A.D., Hoffman, F.M., Hurtt, G.C., Jahn, A., Jones, C.D., Klein, S.A., Krasting, J.P., Kwiatkowski, L., Lorenz, R., Maloney, E., Meehl, G.A., Pendergrass, A.G., Pincus, R., Ruane, A.C., Russell, J.L., Sanderson, B.M., Santer, B.D., Sherwood, S.C., Simpson, I.R., Stouffer, R.J., & Williamson, M.S. (2019). Taking climate model evaluation to the next level. Nature Climate Change, 9, 102-110

Eyring, V., Gleckler, P.J., Heinze, C., Stouffer, R.J., Taylor, K.E., Balaji, V., Guilyardi, E., Joussaume, S., Kindermann, S., Lawrence, B.N., Meehl, G.A., Righi, M., & Williams, D.N. (2016b). Towards improved and more routine Earth system model evaluation in CMIP. Earth System Dynamics, 7, 813-830

Eyring, V., Righi, M., Lauer, A., Evaldsson, M., Wenzel, S., Jones, C., Anav, A., Andrews, O., Cionni, I., Davin, E.L., Deser, C., Ehbrecht, C., Friedlingstein, P., Gleckler, P., Gottschaldt, K.D., Hagemann, S., Juckes, M., Kindermann, S., Krasting, J., Kunert, D., Levine, R., Loew, A., Makela, J., Martin, G., Mason, E., Phillips, A.S., Read, S., Rio, C., Roehrig, R., Senftleben, D., Sterl, A., van Ulft, L.H., Walton, J., Wang, S.Y., & Williams, K.D. (2016c). ESMValTool (v1.0) - a community diagnostic and performance metrics tool for routine evaluation of Earth system models in CMIP. Geoscientific Model Development, 9, 1747-1802

Wenzel, S., Cox, P.M., Eyring, V., & Friedlingstein, P. (2016). Projected land photosynthesis constrained by changes in the seasonal cycle of atmospheric CO2. Nature, 538, 499-501

Juli 2019:

Figure 1 (größer per Klick)
Figure 1 (größer per Klick) Time series of annual mean total ozone (DU) in (a)–(d) four zonal bands, and (e) polar (60°–90°) total ozone in Mar (NH) and Oct (SH), the months when polar ozone losses usually are largest. Data are from WOUDC (World Ozone and Ultraviolet Radiation Data Centre) ground-based measurements combining Brewer, Dobson, SAOZ (Système D'Analyse par Observations Zénithales), and filter spectrometer data (red); the BUV/SBUV/SBUV2 V8.6/OMPS merged products from NASA (MOD V8.6, dark blue) and NOAA (light blue), the GOME/SCIAMACHY/GOME-2 products GSG from University of Bremen (dark green) and GTO from ESA/DLR (light green). MSR-2 (purple) assimilates nearly all ozone datasets after corrections with respect to the ground data. All six datasets have been bias corrected by subtracting averages for the reference period 1998–2008 and adding back the mean of these averages. The dotted gray lines in each panel show the average ozone level for 1970–79 calculated from the WOUDC data. Update from Weber et al. (2018b).

Midlatitude total ozone means were high in 2018, while the tropical values were low compared to the annual means observed in the recent decade as seen in Fig. 1, which shows the annual mean total ozone time series from various merged datasets (five satellite datasets and one based upon groundbased instruments) for the near-global (60°N–60°S) average, tropics, extratropics, and selected months in the polar regions.

For all latitude bands, except the tropics, the average total ozone levels have not yet recovered to the values of the 1970s, a time when ozone losses due to ozone-depleting substances (ODSs) were still very small (WMO 2018). Total ozone is defined as the vertical column amount or in other words the number of ozone molecules above a unit area. Typical units are Dobson units (DU) and the global average column amount is about 300 DU. The lower the ozone column, the higher is the amount of harmful UV radiation reaching the surface that can damage plant cells as well as cause skin cancer.

A recent study by us (Weber et al. 2018a) indicates that total ozone trends since the late 1990s are positive (<1% decade−1) but at most latitudes the trends do not reach statistical significance. Still, the small increase in global total ozone following the significant decline before the 1990s provides proof that the Montreal Protocol and its later Amendments, responsible for phasing out ozone-depleting substances, has been successful. The observed changes in total ozone are reproduced well by state-of-the-art chemistry-transport model calculations that account for changes in transport and for changes in the ozone-depleting substances regulated by the Montreal Protocol (Chipperfield et al. 2018).

In Figure 1 one of the satellite merged data were produced in our institute (GSG dataset) that combines various European sensors (GOME, SCIAMACHY, GOME-2A) that were retrieved with the WFDOAS (weighting function differential absorption spectroscopy) retrievals (Coldewey-Egbers et al., 2005). The European time series started in 1995 and in 2017 and 2018 two new sensors were launched, TROPOMI and GOME-2C, respectively. Both instruments will continue long-term ozone monitoring. In particular TROPOMI provides measurements at an unprecedented spatial resolution corresponding to a foot print of 3.5 km by 7 km at the surface.

Figure 2 shows the total ozone distribution above Antarctica from 1stOctober 2018. In early October the ozone hole reaches its largest extent. In 2018 the size of the ozone hole (defined by values below 220 DU) was higher than the average from recent years. However, the extent of the ozone hole varies from year-to-year depending on the polar meteorology (colder stratospheric winters produce larger ozone holes) as seen in panel e of Fig. 1. Nevertheless, there are signs that spring time total ozone above Antarctica is beginning to recover (Weber et al., 2018, WMO 2018).


Chipperfield, M. P., Dhomse, S., Hossaini, R., Feng, W., Santee, M. L., Weber, M., Burrows, J. P., Wild, J. D., Loyola, D., Coldewey-Egbers, M, 2018: On the Cause of Recent Variations in Lower Stratospheric Ozone. Geophys. Res. Lett., 45, 5718-5726,

Coldewey-Egbers, M., M. Weber, L. N. Lamsal, R. de Beek, M. Buchwitz, J. P. Burrows, 2005: Total ozone retrieval from GOME UV spectral data using the weighting function DOAS approach.Atmos. Chem. Phys. 5, 5015-5025,

Weber, M., Coldewey-Egbers, M., Fioletov, V. E., Frith, S. M., Wild, J. D., Burrows, J. P., Long, C.
S., and Loyola, D., 2018a: Total ozone trends from 1979 to 2016 derived from five merged
observational datasets – the emergence into ozone recovery. Atmos. Chem. Phys., 18, 2097-2117,

Weber, M., Steinbrecht, W., van der A, R., Frith, S. M., Anderson, J., Coldewey-Egbers, M., Davis, S,
Degenstein, D., Fioletov, V., Froidevaux, L., Hubert, D., de Laat, J., Long, C. S., Loyola, D., Sofieva,
V., Tourpali, K., Roth, C., Wang, R., and Wild, J.D., 2018b: Stratospheric ozone [in "State of the
Climate in 2017"], Bull. Amer. Meteor. Soc., 99, S51-S54,

WMO, 2018: World Meteorological Organization/United Nations of Environmental Protection,
Scientific assessment of ozone depletion, 2018. Global Ozone Research and Monitoring Project–
Report No. 58, Geneva, Switzerland, available at

Figure 2
Figure 2 Total ozone above Antarctica on October 1st, 2018, for S5P/TROPOMI. The data were retrieved using our WFDOAS approach (see main text). The data as shown are binned at a spatial resolution of 0.1° by 0.1°.

April 2019:

(größer per Klick)
(größer per Klick) Die Ausdehnung des Meereises um den antarktischen Kontinent herum hat einen ausgeprägten Jahreszyklus

Die Ausdehnung des Meereises um den antarktischen Kontinent herum hat einen ausgeprägten Jahreszyklus: Das Maximum wird normalerweise im September erreicht (am Ende des Südwinters) und das Minimum gegen Ende Februar (am Ende des Südsommers). Das diesjährige Minimum wurde in der letzten Februarwoche erreicht. Nach den Meereisdaten, die am IUP aus Satellitendaten berechnet werden (vom Mikrowellenradiometer AMSR2 auf dem japanischen Satelliten GCOM-W2), war der niedrigste Tageswert der Meereisausdehnung 2,54 Mio. km2 am 23. Februar 2019. Mit Meereisausdehnung meint man die Gesamtfläche aller Satellitenpixel, die mindestens 15% Meereisbedeckung haben.

Der größte Teil des verbleibenden Eises befindet sich, wie gewöhnlich, im Weddellmeer, wo es von der dort vorherrschenden Meeresströmung gegen die Antarktische Halbinsel gedrückt wird (Bild in der Mitte). Das kann man vergleichen mit dem letztjährigen Meereismaximum vom 30. September 2018 (Bild oben). Der jahreszeitliche Unterschied beträgt mehr als 15 Mio km2, das ist 1,5 Mal die Fläche von Europa. Ein Vergleich mit den anderen antarktischen Meereisminima seit Beginn der Satellitenbeobachtungen 1978 (Bild unten) zeigt, dass das diesjährige Minimum zwar niedrig, aber kein Rekord war. Das absolute Minimum, das bisher beobachtet wurde, war 2017. Dennoch: Nach einem im allgemeinen leicht zunehmenden Trend des antarktischen Meereises bis ca. 2013 zeigen die letzten Jahre eine deutliche Abnahme im Sommer wie im Winter.


Spreen, G., L. Kaleschke, and G.Heygster (2008), Sea ice remote sensing using AMSR-E 89 GHz channels ,vol. 113, C02S03, doi:10.1029/2005JC003384.

AMSR2 ASI sea ice concentration data, Antarctic, version 5.4 (NetCDF) (July 2012 - December 2018). ,


Sea ice type distribution in the Antarctic from microwave satellite observations (SITAnt), (

März 2019:

(größer per Klick)
(größer per Klick) Ein Bodenecholot (PIES) ist an Deck befestigt und zum Aussetzen in der Tiefsee vorbereitet. Es wird bis zu 4 Jahre in zirka 4000m bleiben und alle halbe Stunde den Zustand des Ozeans vermessen.

Februar 2019:

(größer per Klick)
(größer per Klick) Average extinction (top) and NO2 concentration (bottom) profiles, separated by day of the week as retrieved from measurements from the roof of IUP Bremen for May 2015 – September 2017. The lowest rows indicate the in situ concentrations from the Bremen air quality network BLUES site Oslebshausen with a second colour-scale on the right-hand side. The red lines show BOREAS aerosol optical depth (top) and NO2 vertical column (bottom) with the mean level depicted as dashed line.

Ground based Multi-Axis Differential Optical Absorption Spectroscopy (MAX-DOAS) observations are a frequently used method to determine atmospheric column amounts of reactive gases such as ozone, nitrogen dioxide or formaldehyde. By probing the atmosphere at different elevation angles, information on the vertical distribution of these absorbers can be determined, as well as on aerosol extinction. In order to extract the profile information from the observations taken at different elevation angles, inversion algorithms are needed which combine a priori information with the information from the measurements.

The Bremen Optimal estimation REtrieval for Aerosols and trace gaseS (BOREAS) is a new, flexible profiling algorithm which combines a non-linear aerosol retrieval module with a trace gas retrieval part. Both Optimal Estimation and Levenberg Marquardt approaches are implemented, and many options for a priori selection and pre-scaling, smoothing constraints, and retrieval modes are implemented. Results from BOREAS have been compared to those from other state of the art retrievals in an extensive study using synthetic data (Frieß et al., 2018) and using measurements during the CINDI-2 campaign (Tirpitz et al., manuscript in preparation) demonstrating the good performance of the algorithm. More details on BOREAS and its validation can be found in Bösch et al., 2018.


Bösch, T., Rozanov, V., Richter, A., Peters, E., Rozanov, A., Wittrock, F., Merlaud, A., Lampel, J., Schmitt, S., de Haij, M., Berkhout, S., Henzing, B., Apituley, A., den Hoed, M., Vonk, J., Tiefengraber, M., Müller, M., and Burrows, J. P.: BOREAS – a new MAX-DOAS profile retrieval algorithm for aerosols and trace gases, Atmos. Meas. Tech., 11, 6833-6859,, 2018.

Frieß, U., Beirle, S., Alvarado Bonilla, L., Bösch, T., Friedrich, M. M., Hendrick, F., Piters, A., Richter, A., van Roozendael, M., Rozanov, V. V., Spinei, E., Tirpitz, J.-L., Vlemmix, T., Wagner, T., and Wang, Y.: Intercomparison of MAX-DOAS Vertical Profile Retrieval Algorithms: Studies using Synthetic Data, Atmos. Meach. Teech. Discuss.,, in review, 2018.

BLUES - Das Bremer Luftüberwachungssystem

Januar 2019:

größer per Klick
größer per Klick

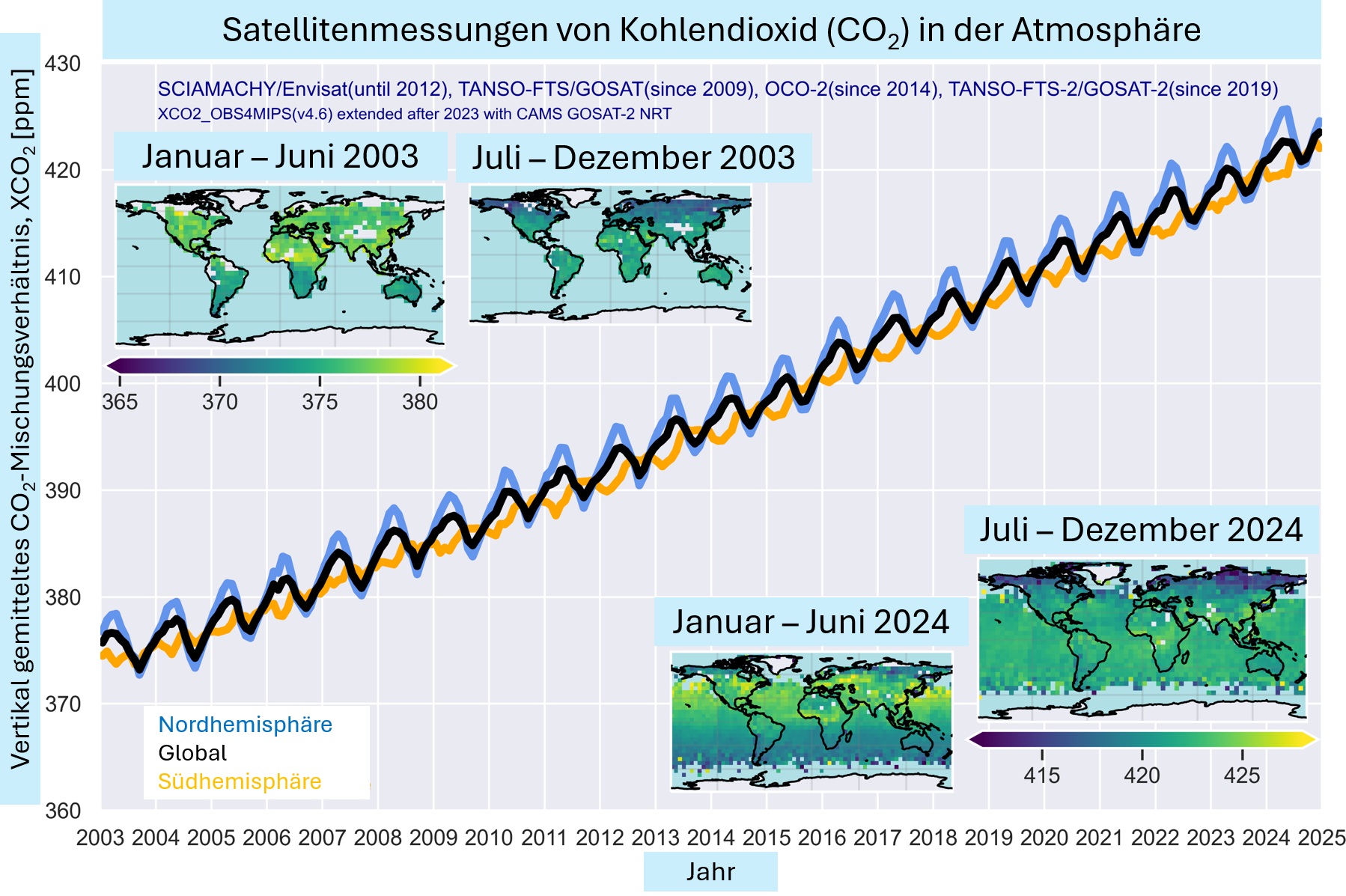

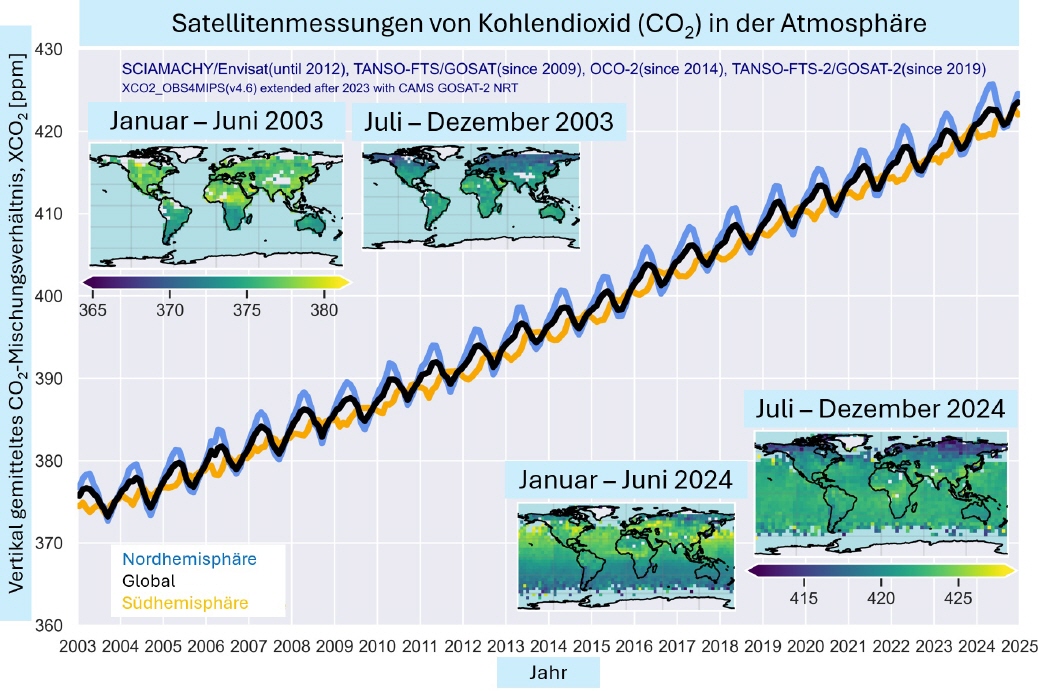

Erste Schätzung des CO2-Anstiegs in 2018 mittels Satellitendaten

Kohlenstoffdioxid (CO2) ist ein wichtiges Treibhausgas und steigende atmosphärische Konzentrationen führen zu Erderwärmung. Das IUP der Universität Bremen entwickelt Methoden, um die atmosphärische CO2-Verteilung vom Weltraum aus zu messen.

Das Bild zeigt (a) eine Zeitreihe des vertikal gemittelten CO2-Mischungsverhältnisses („XCO2“) mit vorläufigen Werten für 2018. Wie man sieht, steigt das CO2 nahezu linear an. Grund hierfür ist primär die Verbrennung fossiler Brennstoffe. Die jahreszeitlichen Schwankungen kommen primär durch die Aufnahme und Abgabe von CO2 durch Pflanzen. Die Zeitreihe wurde berechnet aus der von den Satelliten gemessenen räumlichen Verteilung des XCO2 (siehe Karten in (c)). Die Einheit des XCO2 ist ppm (parts per million). 400 ppm bedeutet, dass die Atmosphäre im Mittel 400 CO2 Moleküle pro eine Millionen Luftmoleküle enthält.

Das Bild zeigt in (b) die jährliche Rate des CO2-Anstiegs. Diese schwankt etwas von Jahr zu Jahr. Ein Grund hierfür sind Schwankungen der Stärke natürlicher CO2-Senken, wie z.B. Wälder, oder eine Zunahme der Quellen, wie z.B. Brände. Die gezeigte erste vorläufige Schätzung für 2018 ist 2,5 ppm/Jahr (Unsicherheitsbereich +/- 0,8 ppm/Jahr). Dies ist etwas weniger als in den Jahren 2015 und 2016 (zwei Jahre mit schwächeren Senken und vielen Bränden, teilweise verursacht durch das natürliche Klimaphänomen El Niῆo) aber etwas mehr als in 2017. Zukünftige verfeinerte Analysen werden zeigen, in wie weit sich diese vorläufige Schätzung bestätigt.


Copernicus (7-Jan-2019): Pressemitteilung: “Last four years have been the warmest on record – and CO2 continues to rise” URL:

EuroNews (14-Dez-2018): Video: “CO2-Konzentration rekordverdächtig hoch” URL:


Buchwitz, M., Reuter, M., Schneising, O., Noel, S., Gier, B., Bovensmann, H., Burrows, J. P., Boesch, H., Anand, J., Parker, R. J., Somkuti, P., Detmers, R. G., Hasekamp, O. P., Aben, I., Butz, A., Kuze, A., Suto, H., Yoshida, Y., Crisp, D., and O'Dell, C., Computation and analysis of atmospheric carbon dioxide annual mean growth rates from satellite observations during 2003-2016, Atmos. Chem. Phys., 18, 17355-17370,, 2018. URL:

Heymann, J., M. Reuter, M. Buchwitz, O. Schneising, H. Bovensmann, J. P. Burrows, S. Massart, J. W. Kaiser, D. Crisp, CO2 emission of Indonesian fires in 2015 estimated from satellite-derived atmospheric CO2 concentrations, Geophys. Res. Lett., DOI: 10.1002/2016GL072042, pp. 18, 2017. URL:

Dezember 2018:

größer per Klick
größer per Klick XCO2 saisonale Amplitude aus CMIP5 Modellen und Satellitenmessungen

Der linke Teil der Abbildung zeigt die mittlere (2003-2016) saisonale Amplitude vom Säulenmittel des Stoffmengenanteils von CO2in trockener Luft (XCO2) von Satellitenmessungen im Vergleich zu einem multi-Modell Mittel aus 10 gekoppelten Kohlenstoff-Klima Modellen, die am Coupled Model Intercomparison Project Phase 5 (CMIP5) teilgenommen haben. Die Modelldaten wurden entsprechend der Abdeckung der Beobachtungsdaten ausgewählt. Der Satellitendatensatz wurde aus Messungen von SCIAMACHY („SCanning Imaging Absorption Spectrometer for Atmospheric ChartographY“) auf Envisat und TANSO-FTS („Thermal And Near infrared Sensor for carbon Observation - Fourier Transform Spectrometer“) auf GOSAT („Greenhouse gases Observing SATellite“) zusammengesetzt (Buchwitz et al., 2018). Die mittlere saisonale Amplitude ist als Differenz zwischen Minimum und Maximum eines Kalenderjahres der enttrendeten Zeitserie definiert.

Sowohl Modelle als auch Beobachtungsdaten zeigen charakteristische saisonale Zyklen: Im Sommer, wenn die Pflanzen durch Photosynthese Kohlenstoff speichern, ist der CO2-Gehalt in der Atmosphäre geringer. Im Winter kommt die Photosynthese zum Stillstand und beim Verfall von Blättern und Pflanzen setzt die Vegetation ihre Kohlenstoffspeicher wieder frei. Daraus folgt, dass die Schwankung der CO2-Konzentration innerhalb eines Jahres abhängig ist von der Stärke der Photosynthese im Sommer und von der Dauer der Wachstumsphasen der Pflanzen. Diese Schwankungen sind in der Nordhemisphäre größer als in der Südhemisphäre. Eine neue Studie im Journal Nature zeigt: Bei einer Verdopplung des CO2-Gehalts in der Atmosphäre, nimmt die Effektivität der Pflanzen Kohlenstoff über Photosynthese aufzunehmen um etwa ein Drittel zu (Wenzel et al., 2016).

Der rechte Teil der Abbildung basiert auf einer Analyse von Schneising et al. (2014) und zeigt den Einfluss der Temperaturanomalie der Vegetationsperiode auf die saisonale Amplitude für die mittleren Breiten der Nordhemisphäre (30-60°N) für Beobachtungsdaten und das multi-Modell Mittel. Die Temperaturanomalie der Vegetationsperiode ist als Anomalie zur monatlichen Klimatologie gemittelt über die Vegetationsperiode (April – September in der Nordhemisphäre) definiert. Es wurden dabei nur Vegetationsflächen genutzt, die durch die MODIS-Klassifizierung für Bodenbedeckung gekennzeichnet sind. Das multi-Modell Mittel kann sowohl die Korrelation, als auch den negativen Trend der saisonalen Amplitude reproduzieren, den die Beobachtungsdaten zeigen.

Die Analyse der Daten ist Teil des „Advanced Earth System Model Evaluation for CMIP“ (EVal4CMIP) Projektes, finanziert durch die Helmholtz Gesellschaft. Die Daten wurden mit dem Earth System Model Evaluation Tool (ESMValTool, Eyring et al. (2016)) prozessiert und analysiert, ein als open-source Software entwickeltes Diagnose- und Performance-Tool zur systematischen Evaluation von Erdsystemmodellen mit Messdaten.


Advanced Earth System Model Evaluation for CMIP (EVal4CMIP)
Coupled Model Intercomparison Project (CMIP)


Buchwitz, M., Reuter, M., Schneising, O., Noël, S., Gier, B., Bovensmann, H., Burrows, J.P., Boesch, H.,
Anand, J., Parker, R.J., Somkuti, P., Detmers, R.G., Hasekamp, O.P., Aben, I., Butz, A., Kuze, A., Suto, H., Yoshida, Y., Crosp, D., O'Dell, C.Computation and analysis of atmospheric carbon dioxide annual mean growth rates from satellite observations during 2003-2016. Atmospheric Chemistry and Physics
Discussions, 1-22, doi:10.5194/acp-2018-158, 2018.

Eyring, V., Bony, S., Meehl, G. A., Senior, C. A., Stevens, B., Stouffer, R. J., and Taylor, K. E.: Overview of the Coupled Model Intercomparison Project Phase 6 (CMIP6) experimental design and organization ,
Geosci. Model Dev., 9, 1937-1958, doi:10.5194/gmd-9-1937-2016, 2016a.

Eyring, V., Righi, M., Lauer, A., Evaldsson, M., Wenzel, S., Jones, C., Anav, A., Andrews, O., Cionni, I.,
Davin, E. L., Deser, C., Ehbrecht, C., Friedlingstein, P., Gleckler, P., Gottschaldt, K.-D., Hagemann, S.,
Juckes, M., Kindermann, S., Krasting, J., Kunert, D., Levine, R., Loew, A., Mäkelä, J., Martin, G., Mason,
E., Phillips, A. S., Read, S., Rio, C., Roehrig, R., Senftleben, D., Sterl, A., van Ulft, L. H., Walton, J., Wang, S., and Williams, K. D.: ESMValTool (v1.0) – a community diagnostic and performance metrics tool forroutine evaluation of Earth system models in CMIP , Geosci. Model Dev., 9, 1747-1802, doi:10.5194/gmd-9-1747-2016, 2016b.

Eyring, V., Gleckler, P. J., Heinze, C., Stouffer, R. J., Taylor, K. E., Balaji, V., Guilyardi, E., Joussaume, S., Kindermann, S., Lawrence, B. N., Meehl, G. A., Righi, M., and Williams, D. N.: Towards improved andmore routine Earth system model evaluation in CMIP, Earth Syst. Dynam., 7, 813-830,
doi:10.5194/esd-7-813-2016, 2016c.

Schneising, O., Reuter, M., Buchwitz, M., Heymann, J., Bovensmann, H., and Burrows, J. P., Terrestrial
carbon sink observed from space: variation of growth rates and seasonal cycle amplitudes in
response to interannual surface temperature variability, Atmospheric Chemistry and Physics, 14(1),
133-141, doi:10.5194/acp-14-133-2014, 2014.

Wenzel, S., Cox, P. M., Eyring, V ., and Friedlingstein, P.: Projected land photosynthesis constrained bychanges in the seasonal cycle of atmospheric CO2, Nature, doi: 10.1038/nature19772, 2016.

Text von Veronika Eyring, Bettina Gier und Katja Weigel
Grafik von Bettina Gier

November 2018:

(größer per Klick)
(größer per Klick) The figure above presents the multiannual (1994-2014) simulated ozone vertical distribution for the Easter Island in Chile, using the TM4-ECPL model. a) Location of Rapa Nui (Easter Island) in the Pacific Ocean. b) The iconic statues of the island (Moai). c) TM4-ECPL values of ozone column in Rapa Nui. d) Measured values for ozone (ozonesondes). e) Mean vertical distribution of ozone using concurrent available measurements (gray line) and modelled data (green line). The vertical dashed line set at 150 ppb of ozone represents the chemical tropopause. Standard deviation of all used data is shown with the horizontal lines (green for modeled values and grey for measurements).

Text: Dr. Nikos Daskalakis and Prof. Mihalis Vrekoussis (LAMOS/IUP)


a) Easter Island map (a), ozone sonde data and back trajectories:Laura Gallardo, Adolfo HenrÍquez, Anne M. Thompson, Roberto Rondanelli, Jorge Carrasco, Andrea Orfanoz-Cheuquelaf & Patricio Velásquez (2016). The first twenty years (1994–2014) of ozone soundings from Rapa Nui (27°S, 109°W, 51 m a.s.l.), Tellus B: Chemical and Physical Meteorology, 68:1,DOI: 10.3402/tellusb.v68.29484

b) Moai picture (b): Matías Morel [CC BY-SA 4.0 (], from Wikimedia Commons

c) Plots (c), (d) and (e): Dr. Nikos Daskalakis (IUP) from original data.

Modelling of the ozone vertical distribution

Introduction-Motivation: Modelling of ozone is a difficult task, since there are no direct ozone emissions. It is a purely secondary pollutant, chemically produced in the atmosphere. The main removal processes consist of chemical transformation and dry deposition. To simulate the vertical distribution of ozone in the troposphere, we need to properly account for both precursor species amounts (CO, NOx etc) and production/removal processes.

For this work, we used the highly documented TM4-ECPL model (Daskalakis et al., ACP, 2016 and references therein). TM4-ECPL is a Chemistry and Transport Model (CTM) with an analytical chemical scheme consisting of ~280 reactions involving 120 tracers (Myriokefalitakis et al., ACP, 2008, 2011). The model is driven by the ERA-Interim meteorology from ECMWF (Dee et al., GMD, 2011) and uses a variety of emissions covering all different sources (anthropogenic, biomass burning, biogenic, marine and soil).

Here we compare the simulated TM4-ECPL ozone concentrationsover the Easter Island (Rapa Nui) to the collocated time series of ozone sondes. Easter Island is chosen as a representative background site of the Southern Pacific region; making such a comparison extremely important for the understanding of the modeled processes. Such a remote location has minimal local anthropogenic impact on ozone precursor levels. This is supported by back trajectories of the region, which show that the air masses reaching the island come mainly from the west, being influenced mostly by the vast ocean (Gallardo et al., Tellus B, 2016).

The model-measurements comparison revealed that the model simulates correctly the seasonality of ozone levels. However, at the same time the comparison also pointed to model’s inability to simulate the tropopause height (panel (e)). The model simulates a higher tropopause affecting this way the mixing of the atmosphere. It manages to capture stratospheric ozone intrusions events that we see from the measurements with higher ozone values well below the tropopause, down to almost 10 km altitude (13 km altitude in the model). To further explain the ozone levels, the impact of long-range transport, wildfires and the El Niño-Southern Oscillation (ENSO) needs to be addressed.

Oktober 2018:

größer per Klick
größer per Klick

Energie Flüsse interner Wellen südlich der Azoren

Interne Schwerewellen werden im Ozean durch Gezeiten, Wind, und die Wechselwirkung von Meeresströmungen mit der Topographie des Meeresbodens angeregt. Modellrechnungen zeigen einen Eintrag von 0.7–1.3 TW Energie in das interne Wellenfeld durch die Umwandlung von barotropen zu baroklinen Gezeiten an Rücken und untermeerischen Bergen. Der Wind trägt weitere 0.3–1.5 TW Energie in den Ozean ein, von denen der größte Teil allerdings in der oberflächennahen Deckschicht verbleibt, und der Beitrag von wechselwirkenden Strömungen beläuft sich auf 0.2 TW. Global werden 1–2 TW Energie benötigt, um die Schichtung des Ozeans aufrecht zu erhalten. Dies geschieht durch Vermischung durch das Brechen der internen Wellen. Beobachtungen zeigen, dass die Energie für diese Vermischung über Tausende von Kilometern hinweg von niedrig-modigen Internen Wellen nahe der Inertialfrequenz transportiert werden. Hochauflösende globale Ozeanmodelle sind zwar inzwischen teilweise in der Lage, die Energiequellen zu Quantifizieren und die Ausbreitung der niedrig-modigsten Wellen zu berechnen, die Variabilität entlang der Ausbreitungspfade und die Dissipation der Energie muss jedoch parametrisiert werden.

Das Bild zeigt Ergebnisse eines Experiments südlich der Azoren, wo an einer untermeerischen Gebirgskette große Mengen interner Wellen erzeugt werden. Die Wellen verlassen die Erzeugungsregion in einem engen sogenannten 'Gezeitenstrahl', was die Beobachtung der Prozesse an den Wellen erleichtert. Das Schemabild zeigt die Bathymetrie der Erzeugungsregion auf der rechten Seite, sowie in rot/blau die Amplitude der Gezeitenwellen aus Satellitenbeobachtungen. Die Messinstrumente, die wir für die Beobachtung der Energieflüsse verwenden, sind das CTD/LADCP System, das vom Schiff aus verwendet wird, um Zeitreihen Stationen durchzuführen, und eine verankerte Messkette, die Langzeitmessungen von Strömungen und Temperatur aufzeichnet. Die gezeigten Daten sind (unten) ein Ausschnitt aus den Flüssen an der Verankerung, zerlegt in Moden, im Vergleich zu vom Modell vorhergesagten Gezeiten, und (rechts oben) die Signale Interner Wellen in Geschwindigkeit (oben) und Schichtung (unten), jeweils ungefiltert (links), und nach M2 Gezeitenfrequenz gefiltert (rechts).


TRR181 Energy Transfers in Atmosphere and Ocean (, Subproject W2: 'Energy transfer through low mode internal waves' Monika Rhein (MARUM/IUP, University of Bremen), Jin-Song von Storch (MPI for Meteorology, Hamburg) DFG

August 2018:

größer per Klick
größer per Klick Müller-Dum, D., Warneke, T., Rixen, T., Müller, M., Baum, A., Christodoulou, A., Oakes, J., Eyre, B. D., and Notholt, J.: Impact of peatlands on carbon dioxide (CO2) emissions from the Rajang River and Estuary, Malaysia, Biogeosciences Discuss.,, in review, 2018.

Carbon Dioxide Emissions from Southeast Asian Rivers

How much carbon dioxide (CO2) is released from Southeast Asian rivers? At the Institute of Environmental Physics (IUP), we have investigated this question in close collaboration with the Leibniz Center for Tropical Marine Research (ZMT), Bremen, and with the Swinburne University of Technology in Kuching, Malaysia. Our recent work, supported by the Central Development Research Fund of the University of Bremen, focused on the Rajang River, the longest river in Malaysia on the island of Borneo. It flows through mountainous terrain, tropical rainforests, oil palm plantations and peatlands. Southeast Asian peatlands store large amounts of organic carbon. It is expected that this carbon is released to the adjacent rivers, converted to CO2 and released to the atmosphere from the water surface. However, due to the proximity of the peatlands to the coast, the material is swiftly transported to the ocean, and CO2 emissions from Southeast Asian rivers are actually much lower than predicted. This was confirmed by our research at the Rajang River.

The left images are photographs of our scientists and students at work. The right image displays the measured partial pressure of CO2 (pCO2, in µatm) in the Rajang River. Peat areas are shown in dark colors. It can be seen that pCO2 increases as the river flows through the peat area, but soon decreases towards the river mouth due to mixing with seawater.

Our current knowledge of Southeast Asian river systems is mainly based on these kind of sampling campaigns. They can be realized in short term at relatively low cost and allow to resolve spatial patterns of carbon dynamics in a river. In order to better constrain the temporal variability of carbon fluxes in peat-draining rivers, it would be desirable to have additional long-term monitoring data. A new project, funded by the German Research Foundation (Deutsche Forschungsgemeinschaft, DFG), will look into the use of satellites to monitor the amount of riverine dissolved organic carbon (DOC), which is one of the most important drivers of CO2 emissions.

Related Projects:

‘Integrating field measurements and numerical modeling in order to understand carbon dynamics in Southeast Asian rivers’, awarded to Denise Müller-Dum (IUP), CDRF (Uni Bremen)
‘Studying dissolved organic carbon in tropical rivers of Malaysia using in-situ and satellite observations’, awarded to Justus Notholt (IUP), Thorsten Warneke (IUP), Tim Rixen (ZMT), DFG

Text and Images: Denise Müller-Dum (IUP) and Moritz Müller (Swinburne University of
Technology, Malaysia)

Juni 2018:

Text and Bild: Carlo Arosio
Text and Bild: Carlo Arosio größer per Klick

The left panel shows long-term changes in zonal monthly mean ozone in the stratosphere over the 2003-2017 period as a function of altitude and latitude. Values are reported in % per decade and shaded areas indicate non-significant trends. The right panel shows the longitudinally resolved long-term changes at an altitude of 38 km, displaying a remarkable variability. These plots confirm a significant increase of ozone concentration at mid latitudes in the upper stratosphere, whereas, in the middle stratosphere down to 20 km the long-term changesare generally not significant.

The observed increase of ozone concentration around 35-45 km is attributed by recent studies to two main causes; the first one is the decreasing concentration of ozone depleting substances after the production and use of CFCs have been regulated by the Montreal Protocol and its amendments. The second explanation is related to the increasing concentration of greenhouse gases responsible for the recorded global tropospheric warming. Due to radiative processes, this leads to a stratospheric cooling that in turn impacts on the ozone chemistry, increasing its production efficiency at these altitudes. Changes in the stratospheric circulation also have a strong influence on the latitudinal and vertical distribution of ozone and its trends.

In order to obtain a long term record of ozone profiles and study the long-term changes, SCIAMACHY and OMPS Limb Profiler stratospheric ozone data sets have been retrieved and merged at the University of Bremen. Since the overlap of the two satellite missions is only 3 months at the beginning of 2012, a reference time series for the merging has been used. Data from the NASA Aura-MLS instrument have been chosen for this purpose, as the instrument performs limb observations with a broad latitude coverage and it is considered stable and reliable.

Trends have been computed using a multilinear regression model, accounting for all phenomena having a strong impact on stratospheric ozone on different temporal and spatial scale: the solar activity, the quasi-biennial oscillation, El Nino and seasonal terms with a period of 6 and 12 months.

Mai 2018:

Atmospheric CO2 reaches new high-water mark

Satellite data show that northern hemispheric CO2 has exceeded 410 parts per million (ppm) in April 2018. Globally approximately 407.6 ppm has been reached. These are the highest atmospheric CO2 concentrations since at least 800000 years.

The figure presents time series of atmospheric CO2 mixing ratios for the entire world (black and grey lines), for the northern hemisphere (red) and for the southern hemisphere (green). Shown are monthly mean column-averaged molecular mixing ratios of CO2 (“XCO2”) as retrieved from satellite measurements.

The lines shown in pale colours (recent years) correspond to preliminary time series generated in Near-Real-Time (NRT) whereas the bright colours show a high-quality Climate Data Record (CDR) currently covering the time period 2003-2016.

All curves show an increasing trend due to increasing concentrations of atmospheric CO2 originating primarily from the burning of fossil fuels (coal, oil, gas). The seasonal variations within each year are primarily due to uptake and release of CO2 by vegetation (photosynthesis, respiration, decay of organic matter). As can be seen, the largest variations are over the northern hemisphere (red line), where most of the terrestrial vegetation is located. The northern hemispheric CO2 maximum is typically reached in May. After that CO2 concentrations will decrease because the growing plants will take up large amounts of CO2 from the atmosphere.

The satellite-derived CO2 time series have been generated at the Institute of Environmental Physics (IUP) of the University of Bremen, Germany. They have been derived from spectroscopic measurements of the European satellite instrument SCIAMACHY on Envisat (2002-2012) and from TANSO-FTS onboard the Japanese GOSAT satellite (since 2009).

The underlying retrieval algorithms and corresponding CO2 data products have been generated in the framework of three European projects: the GHG-CCI project of ESA’s Climate Change Initiative and the EU projects Copernicus Climate Change Service (C3S) and Copernicus Atmosphere Monitoring Service (CAMS).

The CAMS data product (pale colours, recent years) is generated in quasi near-real-time at University of Bremen for the European Centre for Medium-Range Weather Forecasts (ECMWF) for CO2 forecasting and other applications within CAMS.

The bright colours show a Climate Data Record (2003-2016) generated at University of Bremen for C3S, which will be extended each year by one additional year. This data product is based on merging several high-quality data products generated in Europe (by University of Bremen, SRON and University of Leicester), in Japan (by the National Institute for Environmental Studies (NIES)) and in the USA (by NASA’s CO2 ACOS team). The merging algorithm has been developed at University of Bremen in order to generate a data product with the highest possible data quality for challenging carbon and climate applications.

The satellite CO2 observations are mean molecular mixing ratios (or mole fractions) of CO2 with respect to dry air averaged over the entire vertical extent of the atmosphere. 410 parts per million means that on average 1 million air molecules (excluding water vapour) contain 410 CO2 molecules in the air above a given location. Note that these column-averaged observations are similar but not identical to CO2 measurements at the surface carried out, for example, by NOAA.

Monitoring of the atmospheric CO2 concentration is important because increasing atmospheric concentrations lead to global warming as CO2 is an important greenhouse gas. Before the industrial revolution, the atmospheric concentration of CO2 was below approximately 280 ppm for at least the last 800000 years. Since then the amount of atmospheric CO2 has increased by more than 40%. The goal of the Paris Agreement on Climate Change is to reduce emissions of greenhouse gases to limit global warming to less than 2 degrees Celsius - or even better to less than 1.5 degrees - with respect to pre-industrial times. Achieving this goal requires a major international effort. It is currently unclear if this goal can be reached.

Text and Images: Michael Buchwitz, Maximilian Reuter, Stefan Noël

April 2018:

Further investigation on megacities: EMeRGe HALO campaign in East Asia

The measurement campaign of the project EMeRGe (Effect of Megacities on the Transport and Transformation of Pollutants on the Regional and Global Scales) in East Asia started in March 2018 and will continue till 09.04.2018.

EMeRGe (, led by the Institute of Environmental Physics of the University of Bremen,aims at improving the knowledge and prediction of the transport and transformation patterns of European and Asian pollutant outflows of megacities by using the HALO research aircraft ( The first measurement campaign in Europe was successfully carried out in summer 2017.

The HALO payload for EMeRGe combines in situ and remote sensing instruments measuring O3and aerosol precursors, aerosol amounts and composition. This information, which is gathered following optimal HALO transects and vertical profiling, enables the investigation of the photochemical evolution of the megacity plumes, the lifetime of the emissions and the transport of the air masses.

For the second EMeRGe campaign in East Asia, HALO left Germany on the 07.03 to reach its airbase in Tainan (Taiwan) where it will stay till the 7.04.2018. Around 140 flight hours will be flown to investigate the transport and transformation of emissions from the megacities Manila, Taipei, Seoul, Tokyo, Beijing, Shanghai and Guangzhou. Already 10 flights have been successfully performed in March 2018.

EMeRGe additionaly stimulates measurements and modelling studies within an international best effort research partnership with the European, Asian, and American science community. More than 50 partners from 16 different countries are participating in EMeRGe international. From them 27 are Asian partners. EMeRGe international facilitates a much more comprehensive integrated analysis of all sets of observational data products (i.e. aircraft, ground and satellite based data) in the study of the transport and transformation of plumes from MPCs.

Text and Images: Lola Andres Hernandez

März 2018:

größer per Klick
größer per Klick Nitrogen dioxide total columns derived from measurements of the GOME2B instrument (left) and the Sentinel-5 precursor (right) for November 29, 2017. The large increase in spatial resolution at comparable signal to noise ratio makes the data much more useful for air pollution applications.

First NO2 results from the Sentinel-5 Precursor

On October 13, 2017, the Sentinel-5 precursor (S5P), the first of the atmospheric Copernicus instruments was successfully launched into an afternoon low earth orbit. The TROPOMI instrument on-board of this satellite continues the atmospheric remote sensing measurements of the GOME, SCIAMACHY, OMI and GOME-2 instruments. The main data products are O3, NO2, HCHO, CO, CH4 and cloud and aerosol information, but additional data products are possible and are currently being developed at several institutes, including IUP Bremen. Compared to previous instruments, S5P combines global coverage with excellent spatial resolution of 3.5 x 7 km2 (7 x 7 km2 in the SWIR), resulting in an unprecedented level of detail of the derived global maps.

The instrument is still in commissioning phase and official release of operational data is foreseen for July 2018. However, first spectra and lv2 products have already been made available to the core team and validation groups, and so far, data quality appears to be very good. Using the verification algorithms developed over the last years, IUP Bremen has used S5-P radiances and irradiances to produce first maps of CO, CH4, NO2, HCHO, H2O and BrO, all of which show good quality and interesting details.

As an example, data from one S5P overpass over Germany on November 29, 2017 is shown in the figure.

Disclaimer: The presented work has been performed within the framework of the Sentinel-5 Precursor Level 1/Level 2 Product Working Group activities. Results are based on preliminary (not fully calibrated/validated) Sentinel-5 Precursor data that are still subject to change.

Acknowledgement:Sentinel-5 Precursor is a European Space Agency (ESA) mission on behalf of the European Commission (EC). The TROPOMI payload is a joint development by ESA and the Netherlands Space Office (NSO). The Sentinel-5 Precursor ground-segment development has been funded by ESA and with national contributions from The Netherlands, Germany, and Belgium.


Januar 2018:

Nachweis von Methanemissionen aus Mülldeponien

Erstmals gelang es Wissenschaftlern des Instituts für Umweltphysik, Methanemissionen von Mülldeponien mittels Flugzeug-gestützter Fernerkundungsmesstechnik unabhängig zu bestimmen.

Fernerkundungsdaten von Methankonzentrationen wurden zusammen mit Daten einer Standardmessmethode während einer Forschungsmeßkampagne in Kalifornien aufgenommen. Durch neue Auswertemethoden und einem Vergleich mit den Daten der Standardmessmethode konnte nun demonstriert werden, dass sich Fernerkundungsdaten zur unabhängigen Überprüfung der berichteten Methanemissionen aus Mülldeponien gut eignen. Im Falle der untersuchten Mülldeponie stimmen die mittels unabhängiger Prüfung bestimmten Emissionen gut mit den berichteten überein.

Während der Meßkampagne in Kalifornien konnten auch Methanemissionen von Ölfeldern bestimmt werden (vgl. auch Bild des Monats April 2015 [LINK]). Diese Forschungsarbeiten fanden kürzlich (Dezember 2017) im ARD Wirtschaftsmagazin PlusMinus Beachtung.

Im Rahmen eines vom BMBF geförderten Projekts arbeiten die Forscher am IUP derzeit an der Entwicklung der nächsten Generation von Methanfernerkundungssensoren, die eine weitaus bessere Meßgenauigkeit zur Quantifizierung von lokalen Methanemissionen haben wird.



Krautwurst, S., Gerilowski, K., Jonsson, H. H., Thompson, D. R., Kolyer, R. W., Iraci, L. T., Thorpe, A. K., Horstjann, M., Eastwood, M., Leifer, I., Vigil, S. A., Krings, T., Borchardt, J., Buchwitz, M., Fladeland, M. M., Burrows, J. P., and Bovensmann, H.: Methane emissions from a Californian landfill, determined from airborne remote sensing and in situ measurements, Atmos. Meas. Tech., 10, 3429-3452,, 2017


Methanleckagen von Ölfeldern (ARD PlusMinus), Sendung vom 7.12.2017
