DESIGN AND TECHNICAL DATA

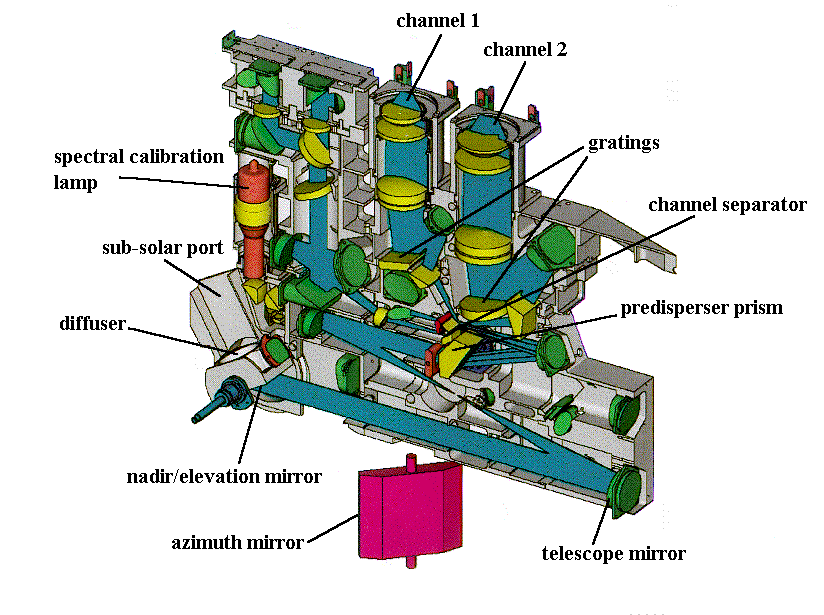

SCIAMACHY optical arrangement (picture courtesy by TPD-TNO, click to enlarge)





UV-Vis-NIR High Resolution Imaging Double Spectrometer
passive hyperspectral UV-VIS-NIR sensor
high straylight suppression
moderately high spectral resolution
high spectral stability
high radiometric accuracy
high dynamic range (7 - 8 orders of magnitude)
moderate spatial resolution
3 different measurement modes for atmospheric measurements




Scanner Unit
Number of axis: 2
Angular resolution: 2.5 arcsec




Telescope
Aperture Diameter 31 mm




Spectrometer
Entrance slit, size: 0.190 mm x 9.6 mm
Instantaneous field of view size: 0.045 deg x 1.8 deg
Sun aperture size: 0.06 mm x 3 mm
Sun aperture instantaneous field of view size: 0.045 deg x 0.72 deg




Thermal Control
Optical bench nominal temperature: 253 K
Optical bench orbital temperature variation: 0.25 K
Detector Temperature: 150 K - 235 K
Detector array orbital temperature variation: 0.02 K




In-Flight Calibration H/W
On-Board Diffuser: aluminium reflection diffuser
Spectral line source: Hollow cathode discharge lamp, Pt/Cr cathode with Ne filling
White light source: Tungsten-Halogen 5 Watts lamp with equivalent blackbody temperature of 3000 K.




Measurement Data
Data Processing: Coadding Mode
Nominal Data Rate: [bit/sec] 400.000
High Data Rate: [bit/sec] 1.867.000
Absolute Datation Accuracy [ms] 10
Relative Datation Accuracy [ms] 1




Budgets
Mass (Budget):[kg] 198
Power(Budget): [W] 122
